Honeywell Farenhyt Series

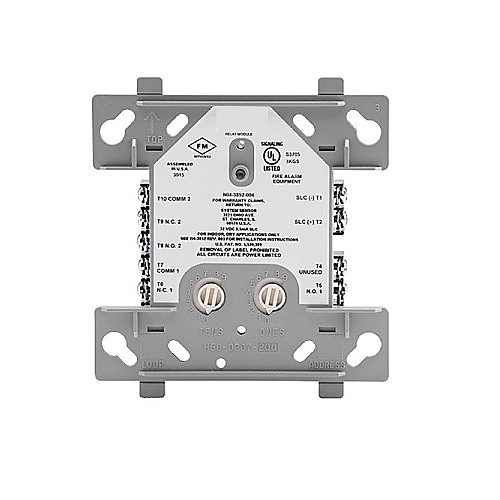

Farenhyt IDP-RELAY Adressable Relay Module
IDP-RELAY | I2-IDPRELAY
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The IDP-RELAY is an addressable relay module for use with Honeywell Farenhyt Series fire alarm control panels (FACPs). The IDP-RELAY allows a Farenhyt FACP to switch discrete contacts by code command. The relay contains two isolated sets of Form C contacts, which operate as a DPDT switch. No supervision is provided for the notification appliance circuit.
The IDP-RELAY contacts can be used for virtually any normally open or normally closed application. Each IDP-RELAY is programmed with a unique signaling line circuit (SLC) loop address. When an event occurs that controls the IDP-RELAY, the relay is triggered by the FACP.
Main Features
- Two sets of Form C contacts
- Rotary address switches for fast installation
- Relay programming is completely flexible – can be mapped to zone conditions
- Panel controlled status LED that flashes green in normal state and is solid red in alarm
- Relay programming is completely flexible– can be mapped to zone conditions
- Polling LED visible through the cover plate
- SEMS screws for easy wiring
- UL Listed
General Information
Name: Farenhyt IDP-RELAY Adressable Relay Module
Category: Honeywell Farenhyt Series, Batteries & Power Supplies, Circuit Breakers, Fuses & Relays, Relays
UPC Code: 783863027680
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number I2-IDPRELAY Brand Name Honeywell Farenhyt Series Manufacturer Part Number IDP-RELAY Sector Fire
Color Green, Red
Compatibility IFP-100 / IFP-100ECS, IFP-1000 / IFP-1000ECS, IFP-2000 / IFP-2000ECS / RPS-2000, IFP-2100 / IFP-2100ECS / RFP-2100, IFP-300 / IFP-300ECS, IFP-50, IFP-75 Environmental Certification UL Environmentally Friendly Yes
