LifeSafety Power FPO150-B100D8PM8NL4E6B1 FlexPower Single Voltage Power Supply 150W with B100 Secondary Voltage Module, D8 Module, M8 Module, NL4 Network Module, E6 Enclosure
FPO150-B100D8PM8NL4E6B1|J7-15BDMN6B1
LifeSafety Power FPO150-B100D8PM8NL4E6B1 FlexPower Single Voltage Power Supply 150W with B100 Secondary Voltage Module, D8 Module, M8 Module, NL4 Network Module, E6 Enclosure
FPO150-B100D8PM8NL4E6B1|J7-15BDMN6B1
Key Features
- 150W Power capacity for robust performance
- Supports 12/24V DC output for flexibility
- 8-Managed outputs for connected devices
Key Features
- 150W Power capacity for robust performance
- Supports 12/24V DC output for flexibility
- 8-Managed outputs for connected devices
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 150W Power capacity for robust performance
- Supports 12/24V DC output for flexibility
- 8-Managed outputs for connected devices
LifeSafety Power
LifeSafety Power FPO150-B100D8PM8NL4E6B1 FlexPower Single Voltage Power Supply 150W with B100 Secondary Voltage Module, D8 Module, M8 Module, NL4 Network Module, E6 Enclosure
FPO150-B100D8PM8NL4E6B1 | J7-15BDMN6B1
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

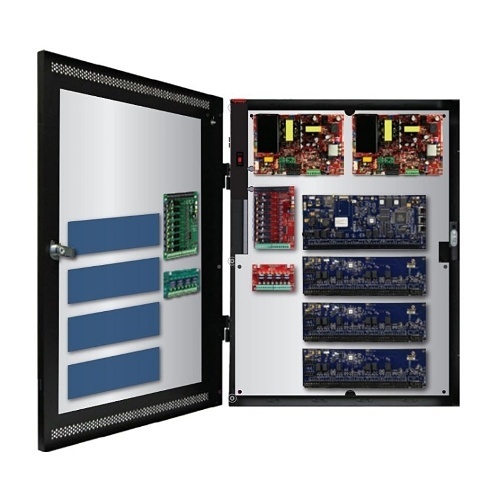

MCLASS Unified Power Systems combine FlexPower power modules alongside Mercury Security access hardware in one compact and secure UL Listed solution. This unit is a 12V and 24V DC dual voltage network managed access power system. One M8 managed control module provides eight access control inputs capable of voltage or dry contact activation, and eight outputs programmable for failsafe / failsecure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. All inputs / outputs are software controlled for remote operation. One D8P module provides eight auxiliary class II outputs and each output is configurable for 12 or 24V DC operation. MCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.
Main Features
- 150W Power capacity for robust performance
- Supports 12/24V DC output for flexibility
- 8-Managed outputs for connected devices
- 8-Auxiliary outputs for additional power needs
- Designed for Brivo access control systems
- Remote monitoring and management capabilities
- Networked power management for seamless integration
General Information
Name: LifeSafety Power FPO150-B100D8PM8NL4E6B1 FlexPower Single Voltage Power Supply 150W with B100 Secondary Voltage Module, D8 Module, M8 Module, NL4 Network Module, E6 Enclosure
Category: LifeSafety Power, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 840432805398
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number J7-15BDMN6B1 Brand Name LifeSafety Power Manufacturer Part Number FPO150-B100D8PM8NL4E6B1 Product Line FlexPower Sector Access Control
