LifeSafety Power FPO150/250-3D8P2M8NL4E8M2-WP-A 400W Dual Voltage PSU, 120 VAC
FPO150/250-3D8P2M8NL4E8M2-WP-A|J7-FPO12WAS3
LifeSafety Power FPO150/250-3D8P2M8NL4E8M2-WP-A 400W Dual Voltage PSU, 120 VAC
FPO150/250-3D8P2M8NL4E8M2-WP-A|J7-FPO12WAS3
Key Features
- Guarantees uniform installations across an enterprise
- Pre-installed wire harness for panel power, lock control, faults and tamper switch
- Point to point wiring; labeled, color coded, twisted pair, shielded communication
Key Features
- Guarantees uniform installations across an enterprise
- Pre-installed wire harness for panel power, lock control, faults and tamper switch
- Point to point wiring; labeled, color coded, twisted pair, shielded communication
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Guarantees uniform installations across an enterprise
- Pre-installed wire harness for panel power, lock control, faults and tamper switch
- Point to point wiring; labeled, color coded, twisted pair, shielded communication
LifeSafety Power
LifeSafety Power FPO150/250-3D8P2M8NL4E8M2-WP-A 400W Dual Voltage PSU, 120 VAC
FPO150/250-3D8P2M8NL4E8M2-WP-A | J7-FPO12WAS3
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

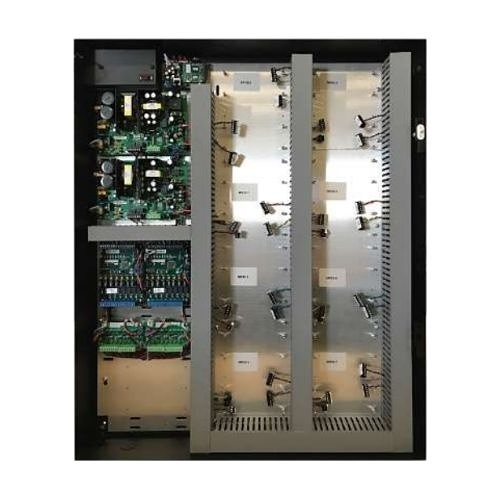

These ProWire Unified Power wall mount models are single and dual voltage access power systems, precision wired for Mercury controllers. ProWire enables the specification and installation of standardized access power equipment across an enterprise for uniform operation, maintenance and servicing. The C8 or M8 control modules provide 16 access control inputs capable of voltage or dry contact activation, and 16 outputs programmable for failsafe / failsecure operation at either 12 or 24VDC and controlled by the power supply fire alarm interface. The D8 modules provide sixteen auxiliary outputs. In dual voltage systems, each output is configurable for 12 or 24VDC operation. ProWire Unified Power enclosures are painted steel with removable backplate, lock, keys and and tamper switch and come 100% factory tested – ready for final panel installation and field wire termination.
Main Features
- Guarantees uniform installations across an enterprise
- Pre-installed wire harness for panel power, lock control, faults and tamper switch
- Point to point wiring; labeled, color coded, twisted pair, shielded communication
- Tie wrap or wire duct cable management options
- Managed systems monitor power, batteries and sixteen outputs
- UL294, ULC S319 joint LSP / Mercury integrated listing
General Information
Name: LifeSafety Power FPO150/250-3D8P2M8NL4E8M2-WP-A 400W Dual Voltage PSU, 120 VAC
Category: LifeSafety Power, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code:
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number J7-FPO12WAS3 Brand Name LifeSafety Power Manufacturer Part Number FPO150/250-3D8P2M8NL4E8M2-WP-A
