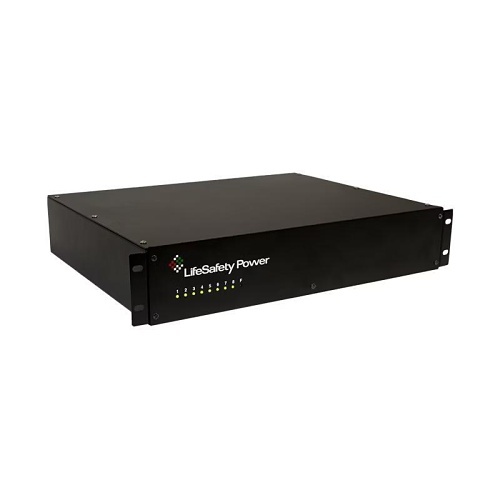

LifeSafety Power RC150-C8 Compact Power System, 8 Lock Control Outputs, Dual Voltage, Gray
RC150-C8|J7-RC150C8
LifeSafety Power RC150-C8 Compact Power System, 8 Lock Control Outputs, Dual Voltage, Gray
RC150-C8|J7-RC150C8
Key Features
- Agency listed for Access Control and Security
- SurgeShield - enhanced input and output surge suppression
- Multiple outputs for system power and direct lock control
Key Features
- Agency listed for Access Control and Security
- SurgeShield - enhanced input and output surge suppression
- Multiple outputs for system power and direct lock control
Key Features
- Agency listed for Access Control and Security
- SurgeShield - enhanced input and output surge suppression
- Multiple outputs for system power and direct lock control

LifeSafety Power
LifeSafety Power RC150-C8 Compact Power System, 8 Lock Control Outputs, Dual Voltage, Gray
RC150-C8 | J7-RC150C8
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
RC Series power supplies provide controlled lock outputs with FAI control and continuous outputs in single or dual voltage 12 or 24V DC configurations ranging from 75 to 500W total output power. Controlled lock outputs each have an input selectable for NO/NC dry contact, voltage, or open collector input. Outputs are selectable for fail-safe or fail-secure. Available in 8 or 16 zone versions, each output is fused at 3A and is protected against surges. Factory set for 120V AC input, they can be user configured for a 230V AC input. RC-N Series versions add network capability.
Main Features
- Agency listed for Access Control and Security
- SurgeShield - enhanced input and output surge suppression
- Multiple outputs for system power and direct lock control
- Microprocessor dual rate charging restores battery sets from 4 to 80Ah
- Fire Alarm Interace (FAI) with optional latch mode for Canada
- Configurable fail-safe / fail-secure modes of operation
- Comprehensive fault detection and reporting
- Continuous or switched DC selectable per output by positional jumper
- Enhanced input and output surge suppression
- Separate System and AC fault form-C relays
General Information
Name: LifeSafety Power RC150-C8 Compact Power System, 8 Lock Control Outputs, Dual Voltage, Gray
Category: LifeSafety Power, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 811711027367
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number J7-RC150C8 Brand Name LifeSafety Power Manufacturer Part Number RC150-C8
-
Output Voltage 12, 24V
-
Input Voltage 120, 230V AC
-
Limited Warranty Lifetime
-
Environmental Certification CE, CSA C22.2 205, FCC Part 15, subpart B, RoHS, UL 1076, UL 294, UL 603, ULC S318, 319
