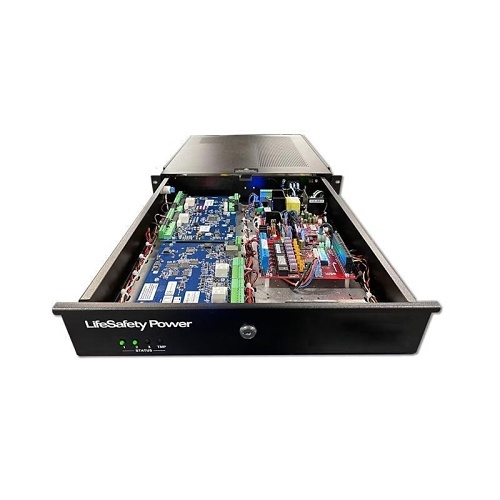

LifeSafety Power RGH75B-M8PNZ Rugged Managed Power System, 8 Networked Outputs, Zinc-Coated Steel Enclosure, Gray
RGH75B-M8PNZ
|J7-RG75BMNZ
Shop All LifeSafety Power
LifeSafety Power RGH75B-M8PNZ Rugged Managed Power System, 8 Networked Outputs, Zinc-Coated Steel Enclosure, Gray
RGH75B-M8PNZ | J7-RG75BMNZ
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
GEMINI Honeywell Unified Rackmount System is the industry's only integrated Honeywell rackmount system designed to provide both operating power and a mechanical housing for Honeywell ProWatch access control components. The RGH75 delivers 75W with mounting for two ProWatch and multiple LifeSafety Power components in an access control system capable of controlling four doors as a standalone rackmount system or multiple doors when interconnected. LSP power and distribution modules are pre-wired into the RGH enclosure.ProWatch controllers are installed by the integrator based on job requirements.
Main Features
- Integrated Honeywell ProWatch rackmount system
- UL, CUL, CE access power listing
- 120 or 230V AC user selectable input supports data center electrical systems
- Single or dual voltage options cover all access functions
- Power distribution options allow either direct or buffered lock control
- Individual output selection for failsafe, failsecure, lock voltage and fire alarm interface
- Network models enable power reporting, battery test and output control functions
- Easy door expansion with multiple RGH models
- 2U drawer on extendable slides simplifies controller installation
- Integrated wire management tie slots and articulating arm
General Information
Name: LifeSafety Power RGH75B-M8PNZ Rugged Managed Power System, 8 Networked Outputs, Zinc-Coated Steel Enclosure, Gray
Category: LifeSafety Power, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 8100049113114
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number J7-RG75BMNZ Brand Name LifeSafety Power Manufacturer Part Number RGH75B-M8PNZ
Output Voltage 12, 24V
Depth 20.00" Height 3.50" Width 19.00"
Input Voltage 120, 230V AC
Mount Type Rack Mount
Environmental Certification CE, FCC Part 15, SubPart B, RoHS, UL 1076, UL 294, UL 603, ULC S318, S319 Features 120 or 230V AC user selectable input supports data center electrical systems, 2U drawer on extendable slides simplifies controller installation, 2U rackmount battery housing available, PN - RBE, Automotive fuses for ease of service and replaceability, Easy door expansion with multiple RGH models, High capacity battery charge capability, Individual output selection for failsafe, failsecure, lock voltage and fire alarm interface, Integrated Honeywell ProWatch rackmount system, Integrated wire management tie slots and articulating arm, Network models enable power reporting, battery test and output control functions, Power distribution options allow either direct or buffered lock control, RoHS Compliant, Single or dual voltage options cover all access functions, UL, CUL, CE access power listing
