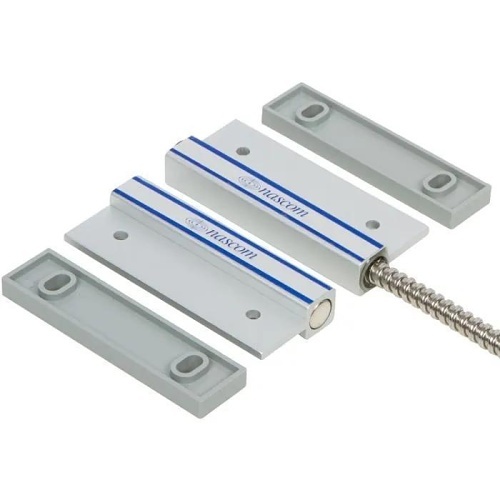

Nascom N505AU/STHS Man Door Surface Mount Door High Security Switch, Aluminum Steel, Silver
N505AU/STHS|J8-N55AUSTHS
Nascom N505AU/STHS Man Door Surface Mount Door High Security Switch, Aluminum Steel, Silver
N505AU/STHS|J8-N55AUSTHS
Key Features
- No Dead Spot Technology
- Universal Mount
- Extra Wide Gap - N35 NdFeB Rare Earth Magnet
Key Features
- No Dead Spot Technology
- Universal Mount
- Extra Wide Gap - N35 NdFeB Rare Earth Magnet
Key Features
- No Dead Spot Technology
- Universal Mount
- Extra Wide Gap - N35 NdFeB Rare Earth Magnet
Nascom
Nascom N505AU/STHS Man Door Surface Mount Door High Security Switch, Aluminum Steel, Silver
N505AU/STHS | J8-N55AUSTHS
Please sign in to view pricing and availability and to add to cart.
Accessories
Overview
Specifications
Documents
Product Overview
Nascom's award winning N505AU FLIP SWITCH™ is perfect for man doors. The unique flip option allows the switch to be mounted with the cable in either direction, without loss of gap.
The FLIP SWITCH™ combines the installers' choice of contact configuration with an N35 NdFeB magnet for maximum gap performance.
NO DEAD SPOT™ technology, in the N505AU closed loop versions, prevent false alarms caused by door misalignment.
FEATURES
- NO DEAD SPOT™ TECHNOLOGY
- UNIVERSAL MOUNT
- EXTRA WIDE GAP - N35 NdFeB RARE EARTH MAGNET
- 36" 22AWG WIRE LEADS
- 24" ARMORED CABLE LEAD PROTECTION
- EXTRUDED ANODIZED (TYPE II) ALUMINUM
- FAST AND EASY INSTALLATION
- LISTED TO UL634 STANDARD
Main Features
- No Dead Spot Technology
- Universal Mount
- Extra Wide Gap - N35 NdFeB Rare Earth Magnet
- 36" 22AWG Wire Leads
- 24" Armored Cable Lead Protection
- Extruded Anodized (Type II) Aluminum
- Fast and Easy Installation
- Listed to UL634 Standard
General Information
Name: Nascom N505AU/STHS Man Door Surface Mount Door High Security Switch, Aluminum Steel, Silver
Category: Nascom, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 856844005936
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
-
ADI Part Number J8-N55AUSTHS Brand Name Nascom Manufacturer Nascom Manufacturer Part Number N505AU/STHS Product Model N505AU/STHS Product Name Man Door Flip Switch With Universal Magnet Product Series N505AU Product Type Magnetic Contact
-
Connectivity Technology Wired Standard Gap 0.5" Termination Style Wire Leads
-
ADI Part Number Replaces SR-3008 Model Number Replaces 3008-W
-
Application/Usage Door Color Silver Material Anodized Aluminum
-
Input Current 250mA Input Voltage 300V DC
-
Contact Type Closed Loop, N.O. Length 36"
-
Country of Origin MX Features NO DEAD SPOT Technology, Universal Mount
