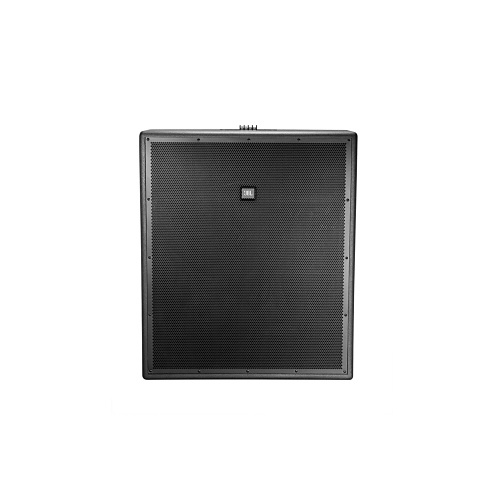

JBL Professional HPD9350 15" High Powered Surround Component Speakers with Configurable Pattern
9350 | JF-HPD9350
Please sign in to view pricing and availability and to add to cart.
Product Overview
Configurable Pattern, Unique 3-Way 15" Design
The 9350 packs a sonic punch, and delivers extraordinary coverage through its advanced engineering, including three patent-pending technologies. Each loudspeaker generates a sculpted side or rear pattern, adjusted with the flick of a switch. With a passive crossover network, waveguide technologies, and line array techniques, coverage can be adjusted to fit a theatre's unique environment. The 9350 further enhances coverage by configurable vertical and horizontal coverage angles based on whether the surround is located on the rear or side wall location.
The result? Premium performance and left/right balance overall, an accomplishment unheard of in cinema. It means the sonic sweet spot just got a whole lot bigger, and that sculpted, impactful sound now comes from all sides. Ultimately, the audience becomes immersed in an audio experience like none other. Rely on the 9350, the ideal complement to front screen loudspeakers, for superior sonic character and dynamics - everywhere.
Features
350 Watt Power handling capability
Dual Dissimilar Arraying
- Creates line array pattern control with just two horns
- Simple switch engages a sculpted side or rear coverage pattern
- Extends HF output power and pattern control a full octave in both spectrum extremes
Acoustic Divider Waveguide
- Greatly improves midrange performance of the Differential DriveĀ® 15" woofer
- Smooth crossover transition created by very tight driver spacing and control of break up mode energy
Bi-pole Wall Decoupling
- Acoustic Divider waveguide creates a low frequency acoustic Bi-pole
- Reduces wall reflection notching typical of surrounds by shaping rear hemisphere energy
Main Features
- 15" High Powered Surround Sound
- Configurable 3-Way Design
- Advanced Engineering with Patent-Pending Technologies
- Adjustable Coverage for Unique Environments
- 350 Watt Power Handling Capability
- Dual Dissimilar Arraying for Line Array Control
- Sculpted Side or Rear Coverage Pattern
- Extended HF Output Power
- Acoustic Divider Waveguide for Improved Midrange
- Bi-pole Wall Decoupling Reduces Reflection
General Information
Specifications
-
ADI Part Number JF-HPD9350 Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number HPD9350 Product Model 9350 Product Name 9350 Configurable Pattern Cinema Surround Loudspeaker Product Series 9300 Product Type Speaker Weight 64lb
-
Crossover Type 3-way Impedance 8 ohms Sensitivity 134dB
-
Maximum Frequency Response 25 kHz Minimum Frequency Response 50Hz
-
Application/Usage Cinema Color Black Depth 16.5" Form Factor Wall Mount Height 30.3" Size 15" Width 25.5"
-
Diameter 15"
