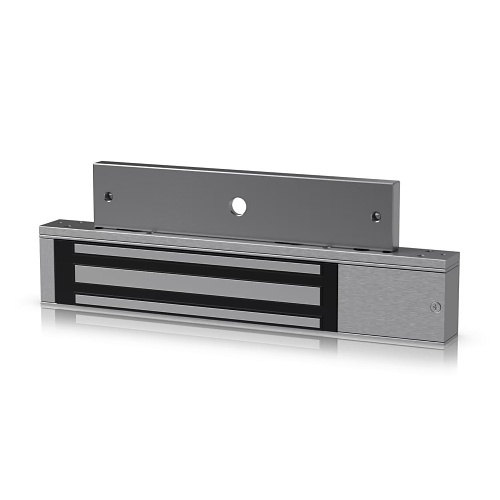

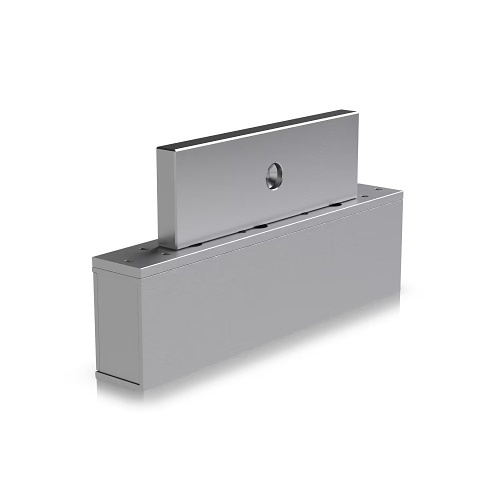

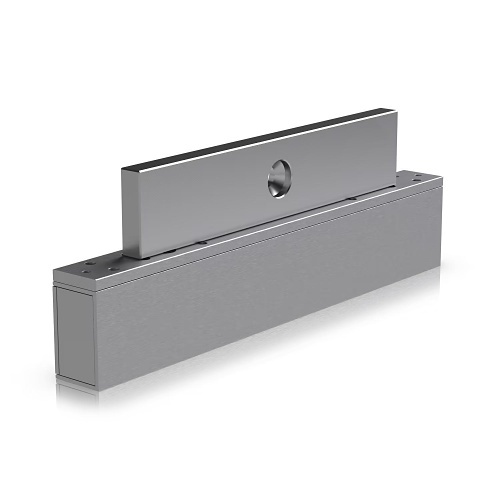

Ubiquiti UA-Lock-Magnetic-540kg Magnetic Lock 1,200 lb (540 kg) Fail-Safe, 10.5" x 2.7" x 1.6" (266 x 67.5 x 40 mm), for UA-Hub & UA-Ultra
UA-LOCK-MAGNETIC-540KG
|KX-MAGNT540
Shop All Ubiquiti
Ubiquiti UA-Lock-Magnetic-540kg Magnetic Lock 1,200 lb (540 kg) Fail-Safe, 10.5" x 2.7" x 1.6" (266 x 67.5 x 40 mm), for UA-Hub & UA-Ultra
UA-LOCK-MAGNETIC-540KG | KX-MAGNT540
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The UA-Lock-Magnetic-540kg is a high-strength, fail-safe magnetic lock designed for secure access control on wood and metal doors. With a holding force of 1,200 lb (540 kg), it supports both inswing and outswing configurations and integrates seamlessly with UniFi Access Hubs including UA-Hub-Door, UA-Hub-Door-Mini, and UA-Ultra. Built from durable aluminum and steel, it features LED status indicators and operates on 12V DC with a low 500mA current draw. Its weather-resistant design and NDAA compliance make it ideal for professional-grade installations in demanding environments.
Main Features
- Fail-safe magnetic lock with 1,200 lb (540 kg) holding force
- Compatible with UA-Hub-Door, UA-Hub-Door-Mini, UA-Ultra, and more

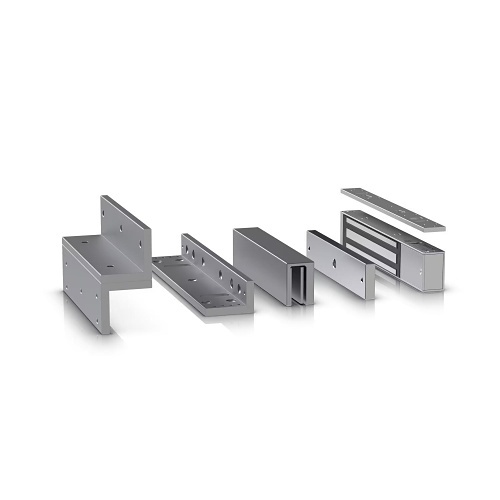

- Supports inswing and outswing wood or metal doors
- Lock body size: 10.5" x 2.7" x 1.6" (266 x 67.5 x 40 mm)
- Armature size: 7.3" x 2.4" x 0.6" (185 x 61 x 16 mm)
- Low power draw at 500mA ±10% on 12V DC
- LED indicators for locked (red) and unlocked (green) status
- Durable aluminum and steel construction
- Operating range: 14 to 122° F (-10 to 50° C), 5–90% humidity
- NDAA compliant and certified by FCC, IC, and CE
General Information
Name: Ubiquiti UA-Lock-Magnetic-540kg Magnetic Lock 1,200 lb (540 kg) Fail-Safe, 10.5" x 2.7" x 1.6" (266 x 67.5 x 40 mm), for UA-Hub & UA-Ultra
Category: Ubiquiti, Access Control, Locking Devices, Magnetic Locks
UPC Code: 810010076519
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number KX-MAGNT540 Brand Name Ubiquiti Manufacturer Part Number UA-LOCK-MAGNETIC-540KG Product Line UniFi Product Name UA-Lock-Magnetic Magnetic Lock Product Series UA Product Type Magnetic Lock
Material Aluminum, Steel Power Consumption 0.5W
Depth 1.6" Height 10.5" Weight 6.4lb Width 2.7"
Input Voltage 12V DC
Holding Force 1200 lb
Compatibility Metal Door, Wood Environmental Certification CE Environmentally Friendly Yes
