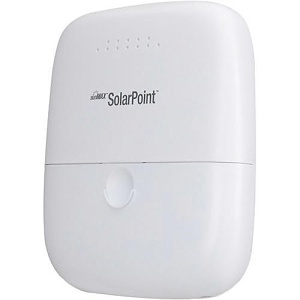

Ubiquiti SM-SP-40 sunMAX Remotely Managed MPPT 24V 7A SolarPoint Site Charging Appliance, White
SM-SP-40
|KX-SMSP40
Shop All Ubiquiti
Ubiquiti SM-SP-40 sunMAX Remotely Managed MPPT 24V 7A SolarPoint Site Charging Appliance, White
SM-SP-40 | KX-SMSP40
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Equipped with (4) 10/100 Mb/s PoE ports, the SunMAX SolarPoint MPPT Charge Controller from Ubiquiti delivers a total power output up to 40W. It features MPPT PV power control, along with a built-in weather prediction service that works in conjunction with AI algorithms to provide you with information about your solar site's existing and future performance. This device's UV-resistant polycarbonate enclosure is IPX4 rated for safe outdoor use.
Main Features
- Indoor and outdoor use
- PV panel input 10-60V
- 4-Port 24V PoE output 10/100 switch
- 24VDC-Out terminal
- Max output power 40W
- External 24V battery charging up to 7A (supports SLA, AGL, AGM)
- Reset button
- System and output LED indicators
General Information
Name: Ubiquiti SM-SP-40 sunMAX Remotely Managed MPPT 24V 7A SolarPoint Site Charging Appliance, White
Category: Ubiquiti, Batteries & Power Supplies, Power Adapters & Chargers, Solar Chargers
UPC Code: 817882026352
Country of Origin: Latvia. Country of origin is subject to change.
Specifications
ADI Part Number KX-SMSP40 Brand Name Ubiquiti Manufacturer Ubiquiti Inc. Manufacturer Part Number SM-SP-40 Product Line UISP Product Model SM-SP-40 Product Name Ubiquiti Networks SunMAX SolarPoint MPPT Charge Controller Product Series sunMAX Product Type Charge Controller
Application/Usage Indoor, Outdoor
Color White Weight 1.43lb
Power Source DC
Mount Type Desktop Mount
Limited Warranty 1-Year
Environmental Certification CE, FCC Environmentally Friendly Yes Features Battery and PV panel terminals (batteries and solar panels available separately), Ethernet and 2.4 GHz Wi-Fi management interface, Modular design, Remote monitoring via a configuration interface enables admins to configure devices and monitor charging in an intuitive GUI, Reset button, Reverse and surge protection, System and output LED indicators, Two-pin terminal block for 24 VDC power
