Product Overview
Grade 5 Hex Cap Screws are made from carbon steel and are used in applications where medium strength is necessary, typically those where controlled clamp force and high loads are required. These screws can be screwed into internally tapped holes or used with a nut. Grade 5 Hex Cap Screws should always be used with a hardened washer under the turned component. SAE J429 covers the material and performance requirements of Grade 5 Hex Cap Screws and ASME B18.2.1 covers the dimensional requirements.
Main Features
- Grade 5 carbon steel for medium strength applications
- Ideal for controlled clamp force and high loads
- Compatible with internally tapped holes or nuts
- Requires hardened washer under turned component
- Complies with SAE J429 and ASME B18.2.1 standards
- Meets SAE J429 material and performance standards
- Conforms to ASME B18.2.1 dimensional requirements
General Information

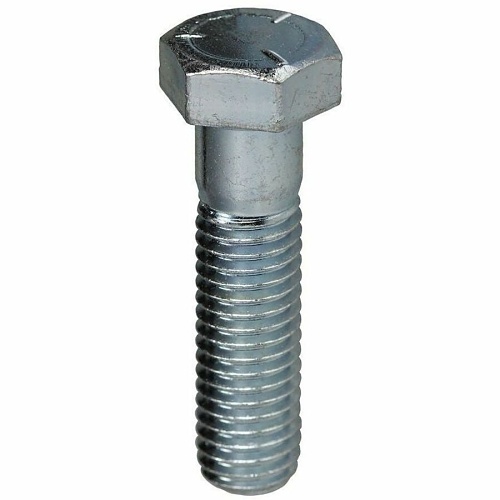

Name: Dottie 5MB142 Screw, 1/4"-20 2" Grade Hex Head Cap Screw
Category: Dottie, Tools & Hardware, Fasteners, Screws
UPC Code: 781002180050
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LH-5MB142 Brand Name Dottie Manufacturer L.H. Dottie Manufacturer Part Number 5MB142 Packaged Quantity 100 Product Model 5MB142 Product Name 1/4''-20 x 2'' Grade 5 Hex Head Cap Screw Product Type Screw
Material Medium Carbon Steel
Diameter 0.438-0.428" Fastener Type Cap Screw Finishing Zinc Plated Head Type Hex Length 2" Maximum Fractional Diameter 0.25" Threads Per Inch (TPI) 20
Environmental Certification California Proposition 65, RoHS Environmentally Friendly Yes
