Product Overview
Machine Screws are uniformly threaded screws designed to be fastened into tapped holes, or used in conjunction with nuts to join two or more assemblies together. Typical applications for machine screws include fastening components of tools, appliances, machines, and electronic devices. ASME B18.3 covers the general requirements for the dimensions and performance of Steel Machine Screws.
Main Features
- 3/8"-16 2" Slotted Flat Head
- Uniformly threaded for tapped holes
- Suitable for tools, appliances, machines
- Complies with ASME B18.3 standards
- Ideal for electronic device assembly
General Information

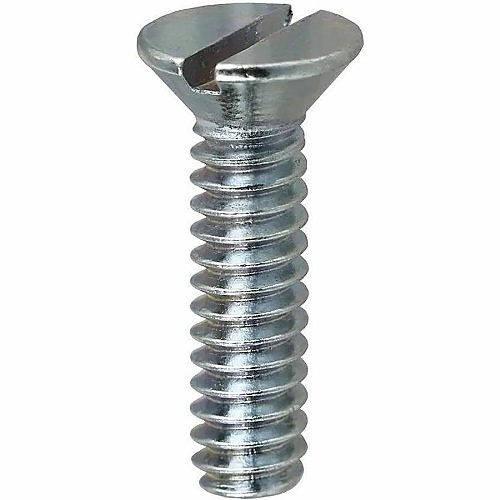

Name: Dottie FM382 Screw, 3/8"-16 2" Slotted Flat Head Machine Screw
Category: Dottie, Tools & Hardware, Fasteners, Screws
UPC Code: 781002652588
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LH-FM382 Brand Name Dottie Manufacturer L.H. Dottie Manufacturer Part Number FM382 Packaged Quantity 100 Product Model FM382 Product Name 3/8''-16 x 2'' Slotted Flat Head Machine Screw Product Type Screw
Material Carbon Steel
Diameter 0.717-0.670" Drive Type Slotted Fastener Type Machine Screw Finishing Zinc Plated Head Type Flat Length 2" Maximum Fractional Diameter 0.37" Threads Per Inch (TPI) 16
Environmental Certification California Proposition 65, RoHS Environmentally Friendly Yes Features Corrosion Resistant
