Product Overview

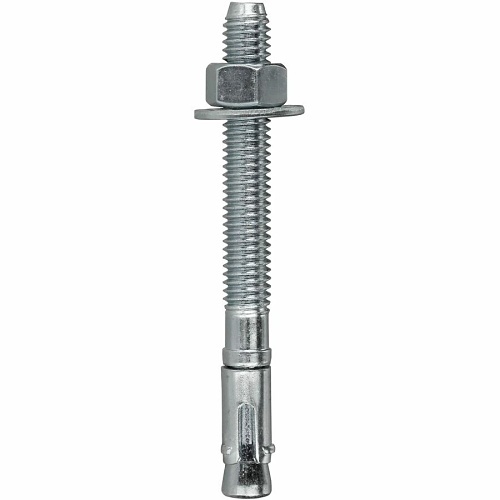

Wedge Anchors are manufactured with a carbon steel body and expansion clip, and are designed for normal and lightweight concrete. These fully threaded expanding anchors are ICC-ESR listed for seismic zones, cracked, and uncracked concrete. They feature a pilot on the hammered end to prevent first thread damage and are a non-bottom-bearing anchor. Common applications for use include structural connections, cable trays, strut, fire sprinklers, and piping supports in concrete substrate. For installation instructions and weight loads, reference the technical data sheet.
Main Features
- Carbon steel body & expansion clip
- Designed for normal & lightweight concrete
- ICC-ESR listed for seismic zones
- Prevents first thread damage
- Non-bottom-bearing anchor
- Suitable for structural connections
- Ideal for cable trays & strut
- Supports fire sprinklers & piping
- Use in cracked & uncracked concrete
General Information
Name: Dottie W38214 Anchor, 3/8" by 2 1/4" Wedge Anchors, 50-Pack
Category: Dottie, Tools & Hardware, Fasteners, Anchors
UPC Code: 781002593065
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number LH-W38214 Brand Name Dottie Connecting Thread Type UNC Manufacturer L.H. Dottie Manufacturer Part Number W38214 Packaged Quantity 50 Product Model W38214 Product Name 3/8'' x 2-1/4'' Wedge Anchor Product Type Anchor
Material Carbon Steel
Diameter 0.37" Fastener Type Wedge Finishing Zinc Plated Length 2.25" Maximum Fractional Diameter 0.37" Threads Per Inch (TPI) 16
Limited Warranty 90-Day
Country of Origin CN Environmental Certification California Proposition 65, RoHS Environmentally Friendly Yes Package Contents - 3/8'' x 2-1/4'' Wedge Anchor
- Washer
- Nut
