Product Overview

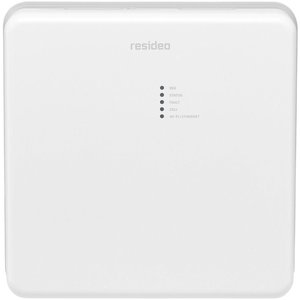

The LTEM-P Communicators easily connect to customers' security system control panels and sends alarms and messages to AlarmNet for transfer to the central monitoring station.
Main Features
- Choose dual communication paths with LTE Cat M1 and Ethernet or optional Wi-Fi
- Connect to panels using the Dialer, Keybus or ECP connectors
- Takeover competitive DSC and Interlogix control panel communications
- Utilizes LTE CAT M1 technology used by leading carrier networks
- Available everywhere that current LTE networks reach
- Full contact ID reporting using ECP mode with compatible Honeywell Home control panels
- Quick, easy installation
- LTEM-P Communicators are easily programmed and activated using AlarmNet 360
- Fully program VISTA-15P and 20P Panels quickly using AlarmNet 360 Web or Mobile App
- Supports connection to the internet via Ethernet cable or Wi-Fi (Wi-Fi requires installation of PROWIFIZW module) – only one method can be used, Ethernet or Wi-Fi, not both
General Information
Name: Resideo LTEM-PV Advanced Modular Communicator, Verizon
Category: Resideo, Intrusion, Intrusion, Alarm Communicators & Equipment, Wireless Intrusion, Alarm Communicators
UPC Code: 194160005699
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number LTEM-PV Application/Usage Radio Communications Brand Name Resideo Country of Origin MX Manufacturer Resideo Manufacturer Part Number LTEM-PV Product Line VISTA Product Model LTEM-P Product Name LTEM-PV Advanced Modular Communicator (VERIZON) Product Series VISTA Product Type Burglar Alarm Communicator
Cellular Generation 4G LTE Connectivity Technology Wireless
Certifications & Standards ETL Listed, UL1023 Household Burglar-Alarm System Units, UL1610 Central-Station Burglar-Alarm Units, UL365 Police Station connected Burglar Alarm Units and Systems, ULCS304 Standard for Control units, Accessories and Receiving Equipment for Intrusion Alarm System
Communication Technology LTE Cat 1 Ethernet Yes
Color White Depth 9.1" Height 9.1" Width 2.2"
Input Voltage 9V DC Power Source DC Power
Installation Type Professional Installation Length 9.1" Operating Frequency 1700 MHz, 700 MHz
ADI Part Number Replaces 7845I-GSM, LTE-IV Model Number Replaces 7845I-GSM, LTE-IV
Z-Wave Yes
Additional Information CURRENT DRAIN Stand-Alone Unit: 70mA idle, 240mA average active With PROLTE Module: 72mA idle, 240mA average active With Wi-Fi Module: 74mA idle, 320mA average active With Dialer Capture Module: 76mA idle, 245mA average active Wi-Fi? and D Compatibility VISTA-250BP, VISTA-250BPE, VISTA-250BPT Features Supports Remote Services feature, which allows the end user to access their security system from their computer via a website. Availability of this service is controlled by the dealer via the web-based programming tool on the AlarmNet 360 w Package Contents LTEM-PV Advanced Modular Communicator (VERIZON) 9VDC Power Adapter
