Leviton 16252-1PE Decora Receptacle Split with Plug Control, 15A, 125V
16252-1PE
|LV-162521PE
Shop All Leviton
Leviton 16252-1PE Decora Receptacle Split with Plug Control, 15A, 125V
16252-1PE | LV-162521PE
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

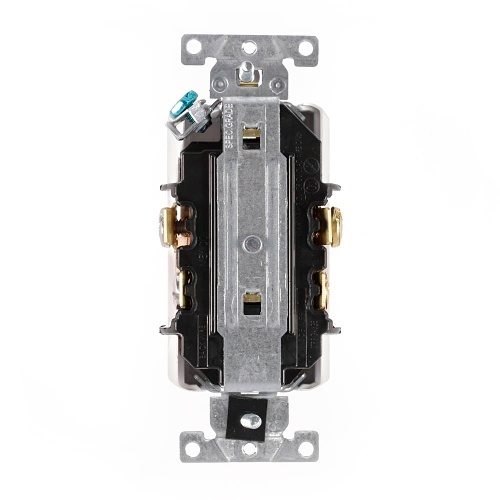

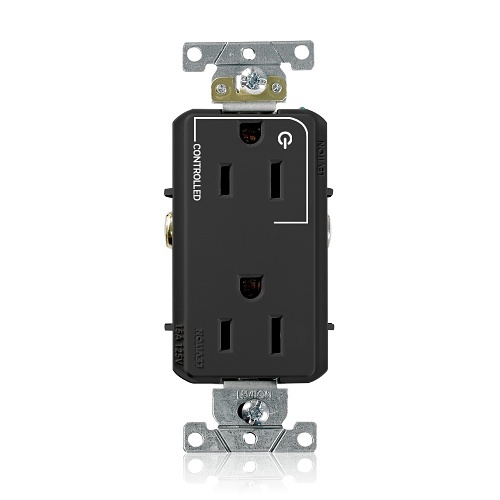

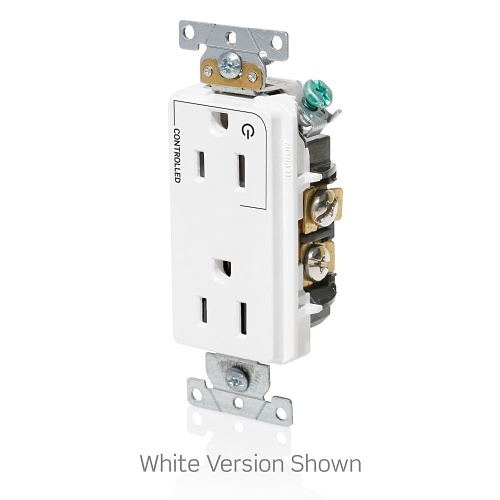

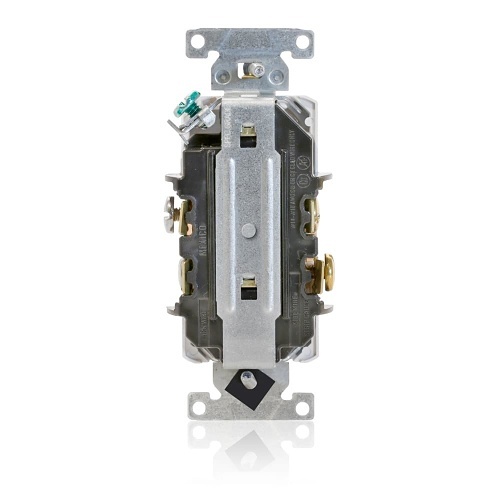

Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Split-Circuit, One Outlet Marked "Controlled" , Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Black
Leviton offers custom imprinting solutions to meet the 2014 National Electrical Code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A & 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol.
Leviton offers custom imprinting solutions to meet the 2014 National Electrical Code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A & 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol.
Main Features
- Heavy-duty industrial specification
- Split-circuit design
- One outlet marked 'Controlled'
- Smooth face for easy cleaning
- 15 Amp, 125 Volt capacity
- Back or side wire installation
- NEMA 5-15R, 2-pole, 3-wire
- Self-grounding for safety
- Custom imprinting available
- Meets 2014 NEC requirements
General Information
Name: Leviton 16252-1PE Decora Receptacle Split with Plug Control, 15A, 125V
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-162521PE Brand Name Leviton Country of Origin MX Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 16252-1PE Product Line Decora Plus Product Name Decora Plus Power Socket Product Type Power Socket
RoHS Compliant Compliant
Color Black Material Polyester, Brass
Current Rating 15.00A Voltage Rating 125V AC
Limited Warranty 10-Year
Features Split-circuit, One Outlet Marked Controlled
