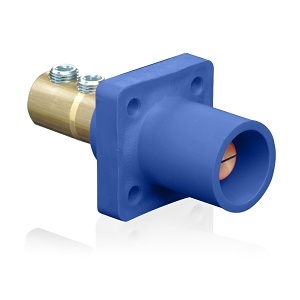

Leviton 16R21-UB Male Panel Receptacle, Taper Nose, 90°, 2/0-4/0AWG, Double Set Screw, Blue
16R21-UB
|LV-16R21UB
Shop All Leviton
Leviton 16R21-UB Male Panel Receptacle, Taper Nose, 90°, 2/0-4/0AWG, Double Set Screw, Blue
16R21-UB | LV-16R21UB
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Male, Panel Receptacle, 90-Degree, Double Set Screw, 2/0-4/0 AWG, 400 Amp Max., 16 Series Taper Nose, Blue Leviton's Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
Single or double set screw or crimp tube termination
NEMA 3R rated for outdoor use when mated
Designed with cylindrical profile to reduce snap
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Single or double set screw or crimp tube termination
NEMA 3R rated for outdoor use when mated
Designed with cylindrical profile to reduce snap
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Main Features
- Male Panel Receptacle, 90-Degree Design
- Supports 2/0-4/0 AWG, 400 Amp Max
- 16 Series Taper Nose, Blue Color
- Easy Assembly and Disassembly
- NEMA 3R Rated for Outdoor Use
- UL: 1691, 508 Certified
- Color-Coded for Phase Identification
- Ideal for Entertainment, Oil & Gas, Mining
- Suitable for Power Distribution & Construction
- Suitable for temporary power applications
General Information
Name: Leviton 16R21-UB Male Panel Receptacle, Taper Nose, 90°, 2/0-4/0AWG, Double Set Screw, Blue
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code:
Country of Origin: .Country of origin is subject to change.
Specifications
ADI Part Number LV-16R21UB Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 16R21UB Product Line Rhino-Hide Product Name Male Receptacle, 90-Degree, 2/0 - 4/0 AWG, Double Set Screw Termination Product Series 16 Product Type Power Socket
Color Blue
Current Rating 400 A Voltage Rating 600V AC
Certifications & Standards CSA Standard : 1691UL : 1691 Country of Origin MX
