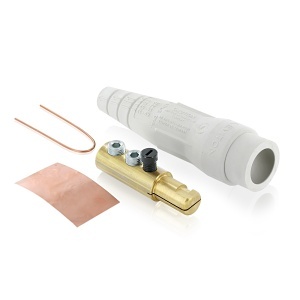

Leviton 18D22-UW Male Detachable Plug, Ball Nose, Double Set Screw, 2-2/0AWG, White
18D22-UW
|LV-18D22UW
Shop all Leviton
Leviton 18D22-UW Male Detachable Plug, Ball Nose, Double Set Screw, 2-2/0AWG, White
18D22-UW | LV-18D22UW
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
18 Series Cam-Type Male Detachable Plug, Double Set Screw Termination, Ball Nose, #2 – 2/0 AWG, 300 Amp Max, White Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools. Single or double set screw termination NEMA 3R rated for outdoor use when mated UL; 1691, 508 – 35k A / 600V Short Circuit Current Rating Color-coding provides fast and easy phase identification Common applications; entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications.
Main Features
- 18 Series Cam-Type Male Detachable Plug
- Double Set Screw Termination
- Ball Nose Design
- #2 – 2/0 AWG Compatibility
- 300 Amp Maximum Capacity
- White Color for Easy Identification
- Easy Assembly and Disassembly
- NEMA 3R Rated for Outdoor Use
- UL 1691, 508 Certified
- 35k A / 600V Short Circuit Rating
General Information
Name: Leviton 18D22-UW Male Detachable Plug, Ball Nose, Double Set Screw, 2-2/0AWG, White
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-18D22UW Brand Name Leviton Manufacturer Part Number 18D22-UW Product Name Male Plug, #2 - 2/0 AWG, Double Set Screw Termination Product Type Male Plug
Voltage Rating 600V
Certifications & Standards CSA, UL
