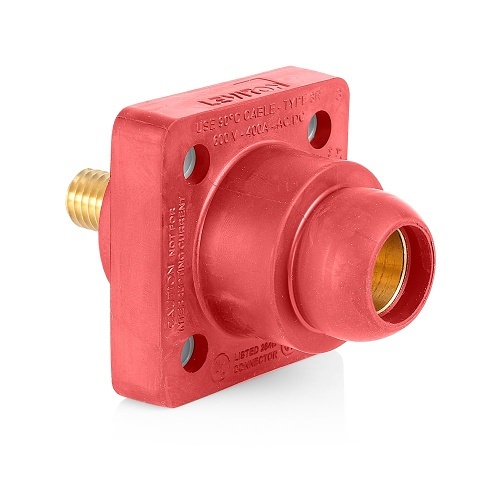

Leviton 18R22-UR Female Panel Receptacle, Ball Nose, 90°, 2-4/0AWG, 0.75" Threaded Stud, Red
18R22-UR | LV-18R22UR
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
18 Series Single Pole Cam Type Female Panel Receptacle, Ball Nose, .75" Threaded Stud Termination, 90 Degrees, Cable Range #2 - 4/0, 400 Amp Max, Red Leviton's Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
Single or double set screw termination
NEMA 3R rated for outdoor use when mated
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Single or double set screw termination
NEMA 3R rated for outdoor use when mated
UL: 1691, 508 - 35k A / 600V Short Circuit Current Rating
Color-coding provides fast and easy phase identification
Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Main Features
- Female Panel Receptacle, Ball Nose, 90°
- Cable Range #2 - 4/0, 400 Amp Max
- 0.75" Threaded Stud Termination
- Easy Assembly and Disassembly
- NEMA 3R Rated for Outdoor Use
- UL: 1691, 508 - 35k A / 600V Rating
- Color-Coded for Phase Identification
- Suitable for Indoor and Outdoor Applications
- Ideal for Entertainment, Oil & Gas, Mining
- Temporary Power for Construction Sites
General Information
Name: Leviton 18R22-UR Female Panel Receptacle, Ball Nose, 90°, 2-4/0AWG, 0.75" Threaded Stud, Red
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-18R22UR Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 18R22-UR Product Line Rhino-Hide Product Name Rhino-Hide Power Socket Product Series 18 Product Type Power Socket
Color Red
Current Rating 400 A Voltage Rating 600V AC
Certifications & Standards CSA Certified : File 152105UL Listed : File E-13399; 1691 Country of Origin MX
