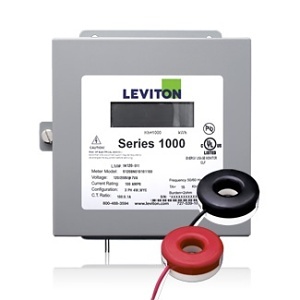

Leviton 1K240-1SW Electric Meter Kit, Submeter, Indoor, 120/240V, 1-Phase 3-Wire, Max 100A, 2-Solid Core Current Transformers
1K240-1SW|LV-1K2401SW
Leviton 1K240-1SW Electric Meter Kit, Submeter, Indoor, 120/240V, 1-Phase 3-Wire, Max 100A, 2-Solid Core Current Transformers
1K240-1SW|LV-1K2401SW
Key Features
- Measures kWh and demand (optional)
- Conforms to all applicable standards of ANSI C12.1
- Equipped standard with an Isolated Pulse Output channel for easy AMR/BAS/BMS/EMS interface
Key Features
- Measures kWh and demand (optional)
- Conforms to all applicable standards of ANSI C12.1
- Equipped standard with an Isolated Pulse Output channel for easy AMR/BAS/BMS/EMS interface
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Measures kWh and demand (optional)
- Conforms to all applicable standards of ANSI C12.1
- Equipped standard with an Isolated Pulse Output channel for easy AMR/BAS/BMS/EMS interface

Leviton
Leviton 1K240-1SW Electric Meter Kit, Submeter, Indoor, 120/240V, 1-Phase 3-Wire, Max 100A, 2-Solid Core Current Transformers
1K240-1SW | LV-1K2401SW
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Series 1000 Submeter, 120/240V 100A 1P/3W Indoor Kit with 2 Solid Core Current Transformers (CT) The Leviton VerifEye Series 1000 line of revenue-grade submeters meets all measurement and verification-based opportunities including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, Series 1000 submeters are easy to specify and install for new construction and retrofits.
Main Features
- Measures kWh and demand (optional)
- Conforms to all applicable standards of ANSI C12.1
- Equipped standard with an Isolated Pulse Output channel for easy AMR/BAS/BMS/EMS interface
- Utilizes revenue-grade 0.5% accuracy class 0.1A secondary solid core Current transformers (CTs) that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs
- Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
- Enclosure options include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
- Interfaces with numerous communication systems – Hardwired Automatic Meter Reading (AMR) or wireless AMR
- Large LCD display shows kWh and optional peak and instantaneous kW with Demand Reset
- Load Indicator LED verifies meter functionality
- Reverse Phase Indicator LED illuminates if the meter is improperly installed
General Information
Name: Leviton 1K240-1SW Electric Meter Kit, Submeter, Indoor, 120/240V, 1-Phase 3-Wire, Max 100A, 2-Solid Core Current Transformers
Category: Leviton, Batteries & Power Supplies, Power Transformers, Open Frame Transformers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number LV-1K2401SW Brand Name Leviton Manufacturer Part Number 1K240-1SW Product Name Submeter, Indoor, 120/240V, 1 Phase 3 Wire, Max 100A, 2 Solid Core Current Transformers, Electric Meter Kit Product Type Submeter and Current Transformer
-
Input Voltage 120V, 240V AC
