Product Overview
100 Amp, 250 Volt 3-Phase, 2P, 3W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Receptacle, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Blue
LEV Series IEC 60309 Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:
Nickel-plated pins and sleeves are self-cleaning and corrosion-resistant
Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
NSF certified sanitary design trusted for use in food & beverage facilities
Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007.
LEV Series IEC 60309 Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:
Nickel-plated pins and sleeves are self-cleaning and corrosion-resistant
Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
NSF certified sanitary design trusted for use in food & beverage facilities
Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007.
Main Features
- 100 Amp, 250 Volt 3-Phase, 2P, 3W
- Industrial Grade, IP66/IP67/IP68/IP69K
- Watertight design for harsh environments
- Nickel-plated, corrosion-resistant pins
- NSF certified for food & beverage use
- UL listed for prefabricated assemblies
- Simplifies installation and improves safety
General Information

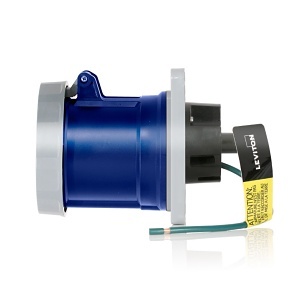

Name: Leviton 3100R6WLEV 100A Pin and Sleeve Receptacle, Blue
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-3100R6WLV Brand Name Leviton Country of Origin MX Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 3100R6WLEV Product Name LEV Series IEC Pin & Sleeve Receptacle Product Series LEV Product Type Power Socket
American Wire Gauge 10AWG, 4AWG
CE Marking Yes CSA Listed Yes Ingress Protection Rating IP66, IP67, IP68, IP69K RoHS Compliant Not Compliant
Operating Temperature (T-T) -35C to +66C
Material Stainless Steel
Voltage Rating 250V AC, 600V
Limited Warranty 5-Year
