Product Overview

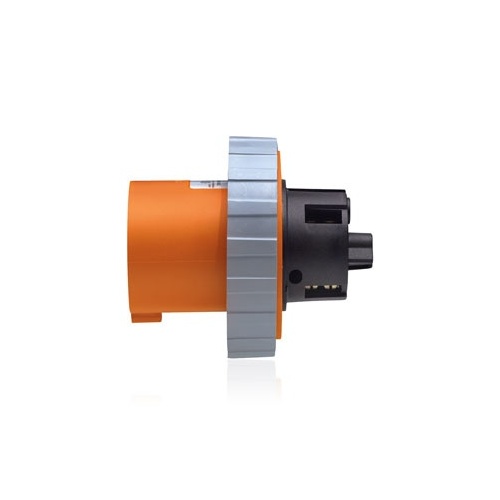

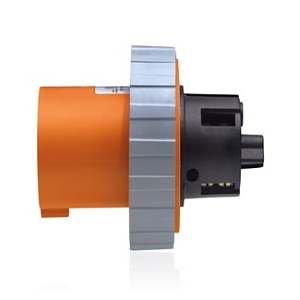

100 Amp, 125/250 Volt, 3P, 4W, Inlet North American Pin & Sleeve Inlet, Industrial Grade, IP67, Watertight - ORANGE
Leviton's pin and sleeve devices are easy to use. Matching amperage and voltage requirements is literally as easy as matching colors and telling time. The amperage rating is related to the size of the device; devices of the same amperage are the same size. The voltage rating is related to the location of the ground sleeve on the female device and the number of conductors. This location is based on a clock face with the key-way at the 6 o'clock position. The ground sleeve is positioned at a specific hour location, depending on the device's voltage rating.
Leviton's pin and sleeve devices are easy to use. Matching amperage and voltage requirements is literally as easy as matching colors and telling time. The amperage rating is related to the size of the device; devices of the same amperage are the same size. The voltage rating is related to the location of the ground sleeve on the female device and the number of conductors. This location is based on a clock face with the key-way at the 6 o'clock position. The ground sleeve is positioned at a specific hour location, depending on the device's voltage rating.
Main Features
- 100 Amp, 125/250 Volt capacity
- 3P, 4W North American Pin & Sleeve
- Industrial Grade, IP67 Watertight
- Easy amperage and voltage matching
- Color-coded for convenience
- Clock face ground sleeve positioning
General Information
Name: Leviton 4100B12W IEC Pin and Sleeve Inlet
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-4100B12W Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 4100B12W Product Name IEC Pin & Sleeve Inlet Product Series Standard Product Type Power Socket
Material Valox
Voltage Rating 125V AC, 250V AC
Limited Warranty 2-Year
