Product Overview

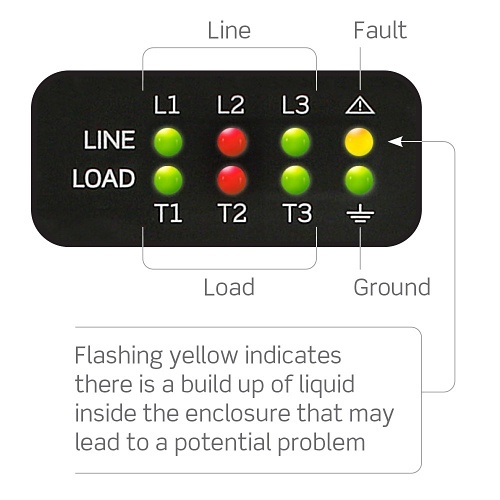

20 Amp, 480 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 and 60309-2 Pin and Sleeve Mechanical Interlock with Local Monitoring Inform Technology, Industrial Grade, IP66/IP67/IP68/IP69/IP69K, Watertight, Non-Fused – Red (480 VAC) Inform technology identifies disturbances that can impact machine performance and minimize unplanned downtime by monitoring line- and load-side voltage, liquid accumulation inside the enclosure, ground continuity and welded contacts The Inform app provides remote monitoring of your devices in real-time, so you can be notified immediately of any abnormal operating conditions - (mobile and desktop versions available) Green LEDs on the cover provide a visual indication that the device is operating under normal conditions, flash red if there is a failure, or flash yellow if there is a buildup of liquid inside of the enclosure that may lead to a potential failure.
Main Features
- 20 Amp, 480 Volt 3-Phase, 3P, 4W
- North American-Rated IEC 60309-1 and 60309-2
- Local Monitoring Inform Technology
- Industrial Grade, IP66/IP67/IP68/IP69/IP69K
- Watertight, Non-Fused Design

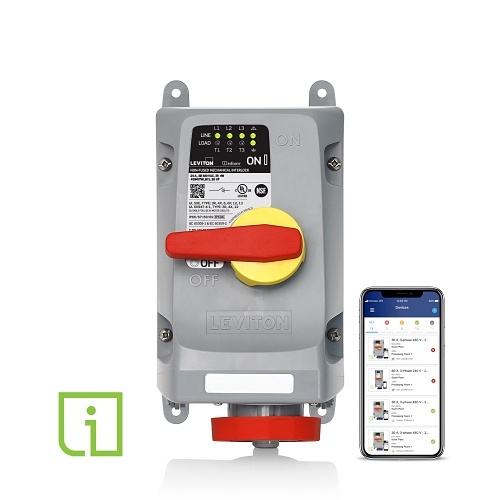

- Real-time Remote Monitoring via App
- Visual LED Status Indicators
- Reduces Unplanned Downtime
- Monitors Voltage, Liquid, Ground Continuity
General Information
Name: Leviton 420MI7WLEVS Mechanical Interlock, 20A, Red
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-420MI7LV Brand Name Leviton Country of Origin MX Manufacturer Part Number 420MI7WLEVS Product Name LEV Series IEC Pin & Sleeve Mechanical Interlock Product Type Mechanical Interlock
American Wire Gauge 10AWG, 4AWG Contact Plating Nickel
CSA Listed Yes Ingress Protection Rating IP66, IP67, IP68, IP69, IP69K RoHS Compliant Not Compliant
Operating Temperature (T-T) -40°C to 60°C
Color Red Material Polycarbonate
Voltage Rating 480V AC
Limited Warranty 5-Year
Features LED Indication
