Product Overview

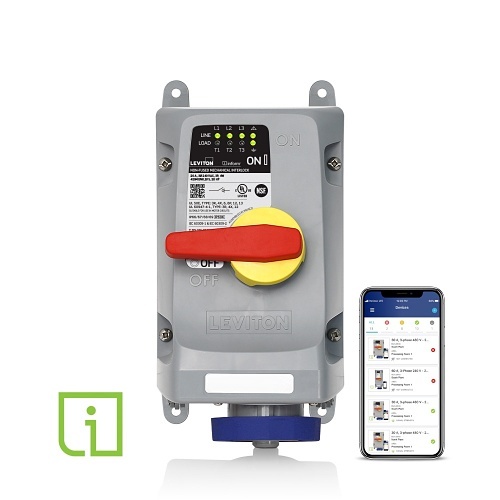

20 Amp, 240 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 and 60309-2 Pin and Sleeve Mechanical Interlock with Local Monitoring Inform Technology, Industrial Grade, IP66/IP67/IP68/IP69/IP69K, Watertight, Non-Fused – Blue (240 VAC) Inform technology identifies disturbances that can impact machine performance and minimize unplanned downtime by monitoring line- and load-side voltage, liquid accumulation inside the enclosure, ground continuity and welded contacts The Inform app provides remote monitoring of your devices in real-time, so you can be notified immediately of any abnormal operating conditions - (mobile and desktop versions available) Green LEDs on the cover provide a visual indication that the device is operating under normal conditions, flash red if there is a failure, or flash yellow if there is a buildup of liquid inside of the enclosure that may lead to a potential failure.
Main Features
- 20 Amp, 240 Volt 3-Phase, 3P, 4W
- North American-Rated IEC 60309-1 and 60309-2
- Industrial Grade, IP66/IP67/IP68/IP69/IP69K
- Watertight, Non-Fused – Blue (240 VAC)
- Local Monitoring with Inform Technology
- Real-time Remote Monitoring via App

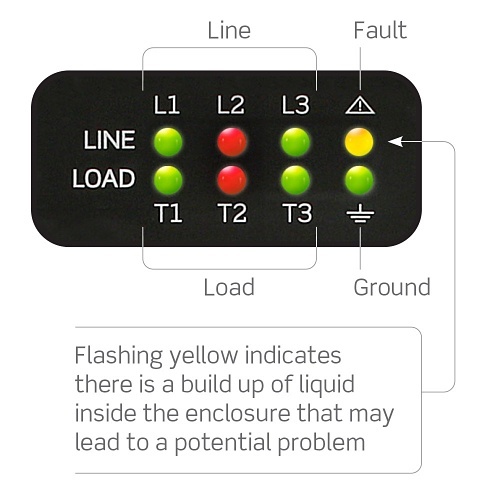

- Green LEDs Indicate Normal Operation
- Red Flash for Failure Alert
- Yellow Flash for Liquid Buildup Warning
- Yellow LEDs indicate liquid buildup
General Information
Name: Leviton 420MI9WLEVS Mechanical Interlock, 20A, Blue
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-420MI9LV Brand Name Leviton Manufacturer Part Number 420MI9WLEVS Product Name LEV Series IEC Pin & Sleeve Mechanical Interlock Product Type Mechanical Interlock
Color Blue
Limited Warranty 5-Year
Country of Origin MX
