Leviton 430C9WLEVPIA Pin and Sleeve Connector with Power Indication and Screwless Clamp Assembly, NSF NSF, 30A, Blue
430C9WLEVPIA
|LV-430C9LVPA
Shop all Leviton
Leviton 430C9WLEVPIA Pin and Sleeve Connector with Power Indication and Screwless Clamp Assembly, NSF NSF, 30A, Blue
430C9WLEVPIA | LV-430C9LVPA
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

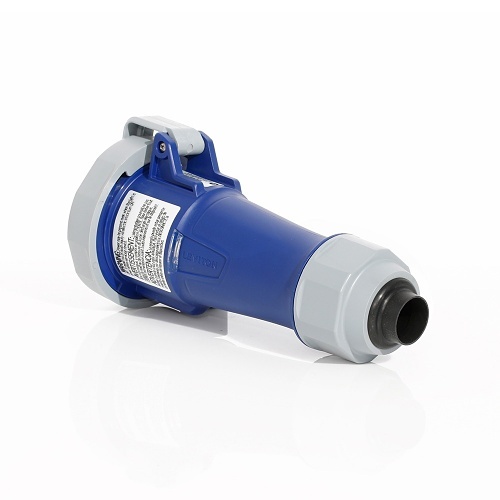

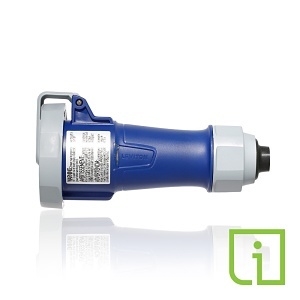

30 Amp, 250 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 and 60309-2 Pin and Sleeve Connector with Power Indication and Screwless Clamp Assembly, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Blue Inform is Leviton’s technology platform that enables conventional Leviton products to provide real-time information that is used to improve operational safety, efficiency, and productivity. Green LED indication offers the ability to visually identify if there is power present LED illuminates when the device is energized Completely screwless back clamp cuts installation time and adds additional dust guard protection ? Warning; Power may be present, even when the light is OFF. To avoid risk of death/injury via electric shock turn OFF power before servicing device. Leviton Pin and Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007.
Main Features
- 30A, 250V 3-Phase Connector
- Power Indication with Green LED
- Screwless Clamp for Easy Installation
- Industrial Grade, IP66/IP67/IP68/IP69K
- Watertight Design
- NSF Certified
- UL Listed Components
- Leviton Inform Technology
- Blue Color for Easy Identification
General Information
Name: Leviton 430C9WLEVPIA Pin and Sleeve Connector with Power Indication and Screwless Clamp Assembly, NSF NSF, 30A, Blue
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-430C9LVPA Brand Name Leviton Manufacturer Part Number 430C9WLEVPIA Product Name LEV Series IEC PinAnd Sleeve Connector with Screwless ClAAssemblyAnd Inform Technology Product Type Connector
Color Blue
Voltage Rating 250V AC
Limited Warranty 5-Year
