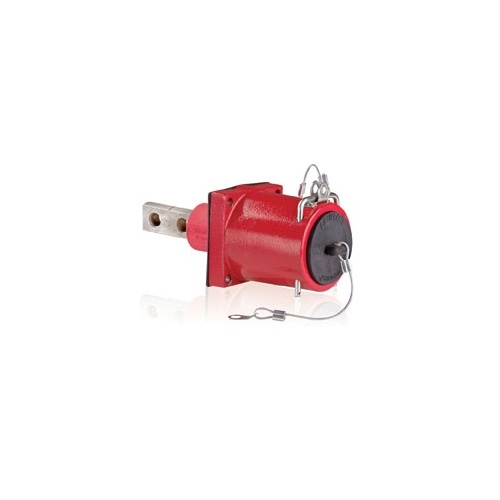

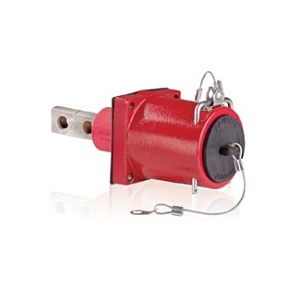

Leviton 49FR2-CR RD High A Complete Female Receptacle Double Hole
49FR2-CR
|LV-49FR2CR
Shop all Leviton
Leviton 49FR2-CR RD High A Complete Female Receptacle Double Hole
49FR2-CR | LV-49FR2CR
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Rhino-Hide 49 Series Single Pole Female Receptacle (Color Coded Metal Housing, Contact, & Dust Cap), Double Hole Bus Bar, Industrial Grade, 313MCM-777MCM Cable, 1000 Volt, 1135 Amp Max - RED
Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
TPV cap prevents contamination when receptacle is not in use
Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
TPV cap prevents contamination when receptacle is not in use
Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
Main Features
- High Amp Female Receptacle
- Color Coded Metal Housing
- Double Hole Bus Bar
- Supports 313MCM-777MCM Cable
- 1000 Volt, 1135 Amp Max
- Industrial Grade Durability
- TPV Cap for Contamination Prevention
- Captive Stainless Steel Clevis Bracket
- Ideal for SCRs and Generator Stations
- Powder-Coated for Quick Identification
General Information
Name: Leviton 49FR2-CR RD High A Complete Female Receptacle Double Hole
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-49FR2CR Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 49FR2CR Product Line Rhino-Hide Product Name Female Receptacle, 313-777 MCM, Double Hole Bus Bar Product Type Power Socket
Material Powder-Coated Cast Aluminum
Color Red
