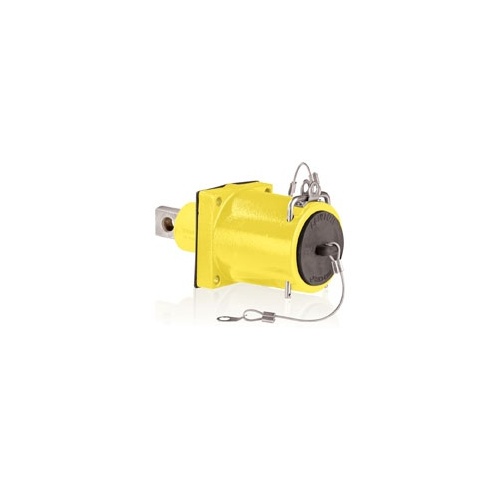

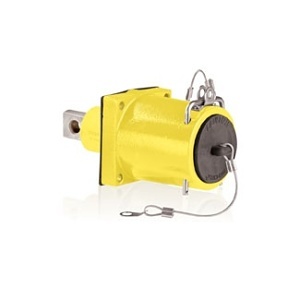

Leviton 49MR1-CY Male Receptacle, 313-777 MCM, Single Hole Bus Bar, Yellow
49MR1-CY
|LV-49MR1CY
Shop all Leviton
Leviton 49MR1-CY Male Receptacle, 313-777 MCM, Single Hole Bus Bar, Yellow
49MR1-CY | LV-49MR1CY
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Rhino-Hide 49 Series Single Pole Male Receptacle (Color Coded Metal Housing, Contact, & Dust Cap), Single Hole Bus Bar, Industrial Grade, 313MCM-777MCM Cable, 1000 Volt, 1135 Amp Max - YELLOW
Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
TPV cap prevents contamination when receptacle is not in use
Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
Cast aluminum powder-coated receptacle housing is color-coded for quick visual identification of circuit and phase connections
TPV cap prevents contamination when receptacle is not in use
Captive stainless steel clevis bracket accepts industry standard lockout; "X" versions feature 45° for easier access in smaller panels
Main Features
- High amp male receptacle with single hole bus bar
- Color-coded metal housing for easy identification
- Supports 313MCM-777MCM cable, 1000 Volt, 1135 Amp Max
- Designed for extreme, demanding conditions
- Ideal for SCRs, generator stations, oil or gas rigs
- Powder-coated aluminum housing for durability
- TPV cap prevents contamination when not in use
- Captive stainless steel clevis bracket for lockout
General Information
Name: Leviton 49MR1-CY Male Receptacle, 313-777 MCM, Single Hole Bus Bar, Yellow
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-49MR1CY Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 49MR1CY Product Line Rhino-Hide Product Name Male Receptacle, 313-777 MCM, Single Hole Bus Bar Product Type Power Socket
Material Powder-Coated Cast Aluminum
Color Yellow
Voltage Rating 1kV AC
