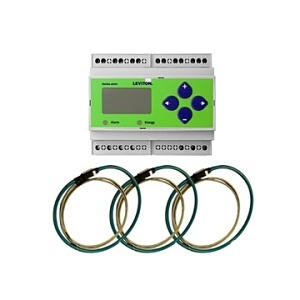

Leviton 4DUBM-24R Din-Rail Series 4100 Submeter, DIN Rail Mount, Universal Voltage, 3-Phase, 3-Wire / 4-Wire, 20A-5000A, (3) 24" Rogowski Current Transformers, Electric Meter Kit
4DUBM-24R
|LV-4DUBM24R
Shop all Leviton
Leviton 4DUBM-24R Din-Rail Series 4100 Submeter, DIN Rail Mount, Universal Voltage, 3-Phase, 3-Wire / 4-Wire, 20A-5000A, (3) 24" Rogowski Current Transformers, Electric Meter Kit
4DUBM-24R | LV-4DUBM24R
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Din-Rail, Series 4100 Submeter, Universal Voltage, Bi-Directional, 3-phase 3W/4W, BACnet MS/TP, Submeter Kit (CTs Included), (3) 24" Rogowski Current Transformers (CT) The VerifEye Series 4100 Bidirectional ModBus RTU and BACnet MS/TP Submeter Kits feature bidirectional monitoring specifically designed for renewable energy applications. The Series 4100 Meter Kits measure power imported from the utility grid and power exported from renewable energy sources like solar panels. The Series 4100 Meters are available in standalone DIN rail mount or a NEMA 4X enclosure. The 3-phase, advanced communication meter kits come with either split core or flexible rope-style Rogowski Current Transformers (CTs) for compact or irregularly shaped conductors.
Main Features
- Bidirectional monitoring
- Industrial temperature range-22-158°F
- 50/60 Hz
- Versatile input voltage 90-600VAC including 347VAC (L-N) and 600VAC (L-L)
- Rogowski CT Options (20-5,000A)
- DIN rail mount or NEMA 4X enclosure
- Energy monitoring for AMR/BAS/BMS/EMS systems
- Industrial monitoring
- Renewable energy applications such as solar panels and wind
- Tenant cost allocation
General Information
Name: Leviton 4DUBM-24R Din-Rail Series 4100 Submeter, DIN Rail Mount, Universal Voltage, 3-Phase, 3-Wire / 4-Wire, 20A-5000A, (3) 24" Rogowski Current Transformers, Electric Meter Kit
Category: Leviton, Tools & Hardware, Electric Power Testing Tools, Multimeters
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-4DUBM24R Brand Name Leviton Manufacturer Part Number 4DUBM-24R Product Name Submeter, DIN rail mount, UniversalVage, 3 Phase 3 Wire/4 Wire, 20A-5000A, (3) 24" Rogowski Current Transformers, Electric Meter Kit Product Series Din-Rail
