Product Overview
100 Amp, 347/600 Volt 3-Phase, 4P, 5W, LEV Series North American-Rated IEC 60309-1 and 60309-2 Pin and Sleeve Plug, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Black LEV Series IEC 60309 Pin and Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity; Threaded housing design removes several screws making installation quicker and easier Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion NSF certified sanitary design trusted for use in food and beverage facilities Leviton Pin and Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007.
Main Features
- 100 Amp, 347/600 Volt 3-Phase, 4P, 5W configuration
- Industrial Grade, suitable for harsh environments
- IP66/IP67/IP68/IP69K watertight ratings
- Threaded housing for quick installation
- NSF certified for food and beverage facilities
- UL listed for prefabricated wiring assemblies
- UL listed for safety and compliance
General Information

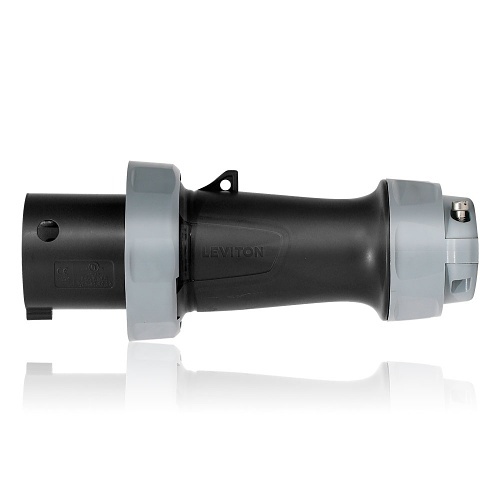

Name: Leviton 5100P5WLEV 100A Pin and Sleeve Plug, Black
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-5100P5WLV Brand Name Leviton Country of Origin MX Manufacturer Part Number 5100P5WLEV Product Name LEV Series IEC Pin and Sleeve Plug Product Type Pin & Sleeve Plug
American Wire Gauge 10AWG, 4AWG
CE Marking Yes CSA Listed Yes Ingress Protection Rating IP66, IP67, IP68, IP69K RoHS Compliant Not Compliant
Operating Temperature (T-T) -35C to +66C
Color Black Material Stainless Steel
Voltage Rating 347V AC, 600V AC
Limited Warranty 5-Year
