Product Overview

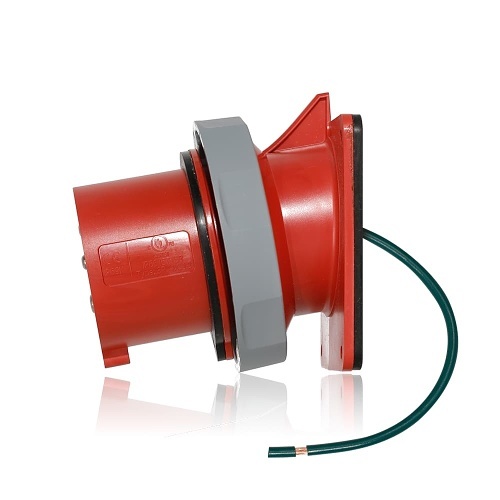

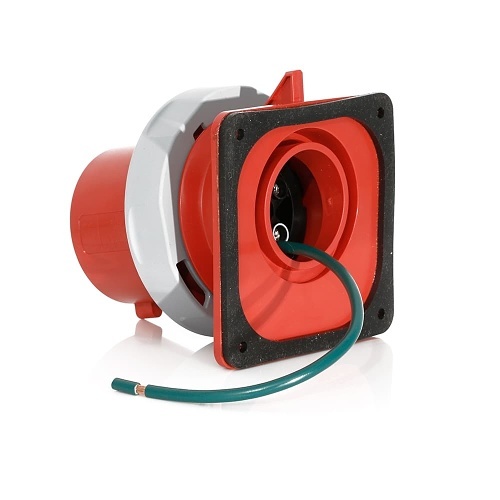

30 Amp, 277/480 Volt 3-Phase, 4P, 5W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Inlet, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Red
LEV Series IEC Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:
Nickel-plated pins and sleeves are self-cleaning and corrosion-resistant
Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
NSF certified sanitary design trusted for use in food & beverage facilities
Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007.
LEV Series IEC Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:
Nickel-plated pins and sleeves are self-cleaning and corrosion-resistant
Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
NSF certified sanitary design trusted for use in food & beverage facilities
Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007.
Main Features
- 30 Amp, 277/480 Volt 3-Phase
- 4P, 5W, North American-Rated
- Industrial Grade, Watertight Design
- Nickel-Plated, Corrosion-Resistant Pins
- Superior IP66/IP67/IP68/IP69K Ratings
- NSF Certified for Food & Beverage Use
- UL Listed for Prefabricated Assemblies
General Information
Name: Leviton 530B7WLEV LEV Series IEC Pin and Sleeve Inlet, Red
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-530B7WLEV Brand Name Leviton Country of Origin MX Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 530B7WLEV Product Name LEV Series IEC Pin & Sleeve Inlet Product Series LEV Product Type Power Socket
American Wire Gauge 12AWG, 8AWG
CE Marking Yes CSA Listed Yes Ingress Protection Rating IP66, IP67, IP68, IP69K RoHS Compliant Not Compliant
Operating Temperature (T-T) -40°C to 60°C
Color Red Material Stainless Steel
Voltage Rating 277V AC, 480V AC, 600V
Limited Warranty 5-Year
