Product Overview

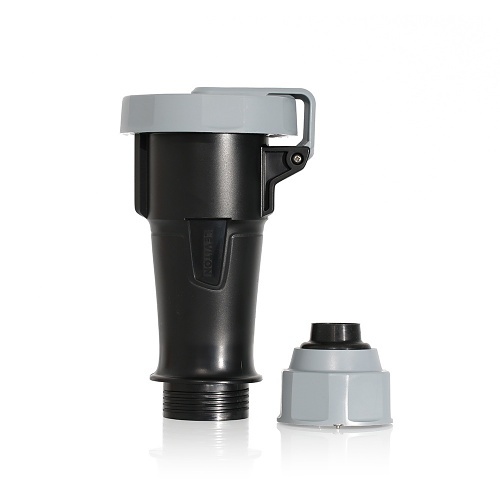

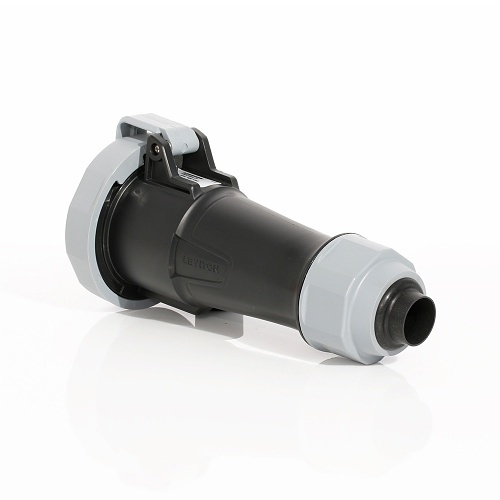

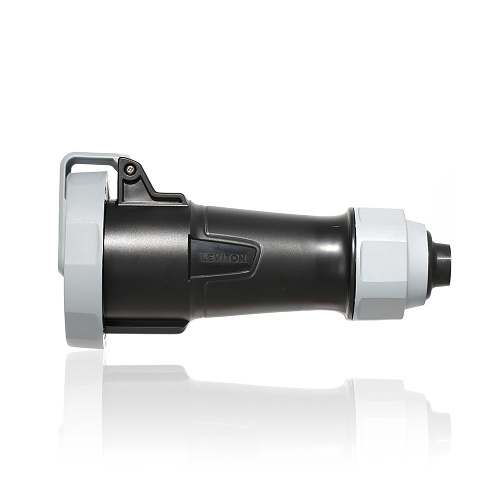

30 Amp, 347/600 Volt 3-Phase, 4P, 5W, LEV Series North American-Rated IEC 60309-1 and 60309-2 Pin and Sleeve Connector with Screwless Clamp Assembly, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Black LEV Series IEC Pin and Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity; Completely screwless back clamp cuts installation time and adds additional dust guard protection Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion NSF certified sanitary design trusted for use in food and beverage facilities Leviton Pin and Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007.
Main Features
- 30 Amp, 347/600 Volt 3-Phase Connector
- 4P, 5W, North American-Rated IEC 60309-1/2
- Screwless Clamp Assembly for Easy Installation
- Industrial Grade with IP66/IP67/IP68/IP69K Ratings
- Watertight for Washdown/Outdoor Applications
- NSF Certified for Food and Beverage Use
- UL Listed for Prefabricated Wiring Assemblies
- Dust Guard Protection with Screwless Back Clamp
General Information
Name: Leviton 530C5WLEVA 30A Pin and Sleeve Connector, Black
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Plugs, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-530C5WLVA Brand Name Leviton Manufacturer Part Number 530C5WLEVA Product Name LEV Series IEC PinAnd Sleeve Connector with Screwless ClAAssembly Product Type Connector
Color Black
Voltage Rating 347V|600V AC
Limited Warranty 5-Year
