Product Overview

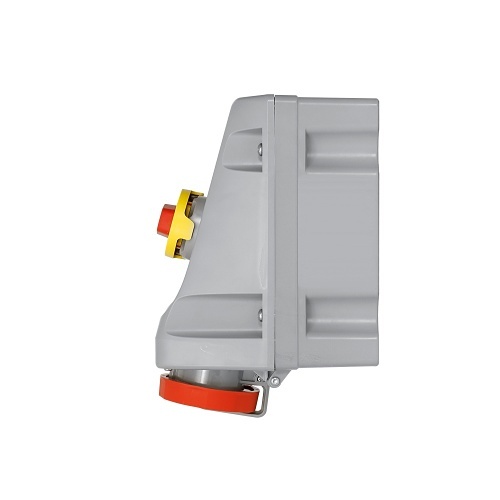

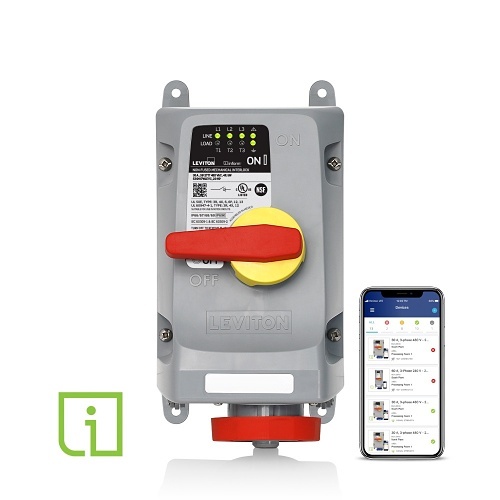

30 Amp, 277/480 Volt 3-Phase, 4P, 5W, LEV Series North American-Rated IEC 60309-1 and 60309-2 Pin and Sleeve Mechanical Interlock with Local and Remote Monitoring Inform Technology, Industrial Grade, IP66/IP67/IP68/IP69/IP69K, Watertight, Non-Fused, Wi-Fi (no hub required). Requires Internet connection for remote monitoring. – Red (277/480 VAC) Inform technology identifies disturbances that can impact machine performance and minimize unplanned downtime by monitoring line- and load-side voltage, liquid accumulation inside the enclosure, ground continuity and welded contacts The Inform app provides remote monitoring of your devices in real-time, so you can be notified immediately of any abnormal operating conditions - (mobile and desktop versions available) Green LEDs on the cover provide a visual indication that the device is operating under normal conditions, flash red if there is a failure, or flash yellow if there is a buildup of liquid inside of the enclosure that may lead to a potential failure Compatible with Wi-Fi® 802.11 a/b/g/n networks at 2.4GHz and 5GHz with WPA or WPA2 security. If using a variable frequency drive (VFD), it must be installed between the mechanical interlock switch and the motor. Click here to learn more about our full line of LEV Series IEC 60309 devices. Click here to learn more about Inform Technology.
Main Features
- 30 Amp, 277/480 Volt 3-Phase
- 4P, 5W, North American-Rated IEC 60309-1/2
- Mechanical Interlock with Local/Remote Monitoring
- Industrial Grade, IP66/IP67/IP68/IP69/IP69K
- Watertight, Non-Fused, Wi-Fi Enabled
- Requires Internet for Remote Monitoring
- Inform Technology for Performance Monitoring
- Real-time Remote Monitoring via App
- Green/Red/Yellow LED Status Indicators
- Compatible with Wi-Fi 802.11 a/b/g/n
General Information
Name: Leviton 530MI7WLEVC Mechanical Interlock, 30A, Red
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-530MI7LVC Brand Name Leviton Manufacturer Part Number 530MI7WLEVC Product Name 30A Mechanical Interlock with LocalAnd Remote Monitoring Inform Technology – LEV Series Product Type Mechanical Interlock
Color Red
Limited Warranty 5-Year
Country of Origin MX
