Leviton 5825-W 15A Decora Plus Duplex Receptacle / Outlet, Commercial Grade, White
5825-W
|LV-5825W
Shop all Leviton
Leviton 5825-W 15A Decora Plus Duplex Receptacle / Outlet, Commercial Grade, White
5825-W | LV-5825W
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

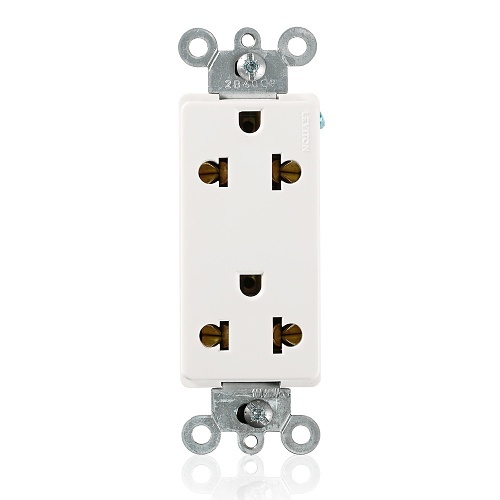

Decora Plus Duplex Receptacle Outlet, Straight Blade and Europlug, Commercial Specification Grade, Smooth Face, 15 Amp, 125/250 Volt, Back and Side Wire, NEMA 5-15R_CEE 7/16 , 2-Pole, 3-Wire - White
Leviton has combined the two most popular configurations, a NEMA 5-15 and CEE 7/16 1-15 plug. This two-pin plug is probably the single most widely used international plug, popularly known as the Europlug. The plug is unearthed and has two round, 4 mm pins, which usually converge slightly. It can be inserted into any socket that accepts 4 mm round contacts spaced 19 mm apart. It is described in CEE 7/16 and is also defined in Italian standard CEI 23-5 and Russian standard GOST 7396. The Europlug is used in Class II applications throughout continental Europe (Germany, Austria, Switzerland, Italy, Greece, the Netherlands, Belgium, France, Spain, Portugal, Denmark, Norway, Sweden, Finland, Poland, The Czech Republic, Slovakia, Hungary, Romania, Bulgaria, Lithuania). It is also used in Turkey, the Middle East, and most of Africa and South America (Brazil), as well as the former Soviet republics, and many developing nations. The plug is intended for use with devices that require 2.5 A or less. Because it can be inserted in either direction into the socket, live and neutral are connected at random.
Leviton has combined the two most popular configurations, a NEMA 5-15 and CEE 7/16 1-15 plug. This two-pin plug is probably the single most widely used international plug, popularly known as the Europlug. The plug is unearthed and has two round, 4 mm pins, which usually converge slightly. It can be inserted into any socket that accepts 4 mm round contacts spaced 19 mm apart. It is described in CEE 7/16 and is also defined in Italian standard CEI 23-5 and Russian standard GOST 7396. The Europlug is used in Class II applications throughout continental Europe (Germany, Austria, Switzerland, Italy, Greece, the Netherlands, Belgium, France, Spain, Portugal, Denmark, Norway, Sweden, Finland, Poland, The Czech Republic, Slovakia, Hungary, Romania, Bulgaria, Lithuania). It is also used in Turkey, the Middle East, and most of Africa and South America (Brazil), as well as the former Soviet republics, and many developing nations. The plug is intended for use with devices that require 2.5 A or less. Because it can be inserted in either direction into the socket, live and neutral are connected at random.
Main Features
- Commercial grade, durable construction
- Supports 15 Amp, 125/250 Volt
- Compatible with NEMA 5-15R and Europlug
- Smooth face design for easy cleaning

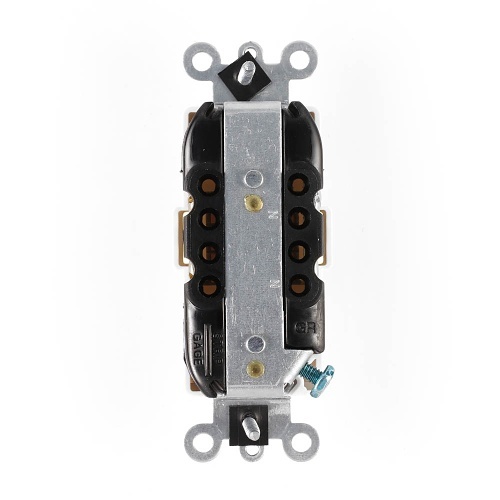

- Back and side wire connections
- 2-Pole, 3-Wire configuration
- Widely used international Europlug
- Suitable for Class II applications
- Versatile for global use
- Ideal for Class II Applications
General Information
Name: Leviton 5825-W 15A Decora Plus Duplex Receptacle / Outlet, Commercial Grade, White
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-5825W Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 5825-W Product Line Decora Plus Product Name 15 Amp Decora Plus Duplex Receptacle/Outlet, Commercial Grade Product Type Power Socket
Material Thermoplastic Nylon Receptacle Type NEMA 5-15R
Color White
Current Rating 15 A Voltage Rating 125V AC|250V AC
Limited Warranty 10-Year
Country of Origin MX
