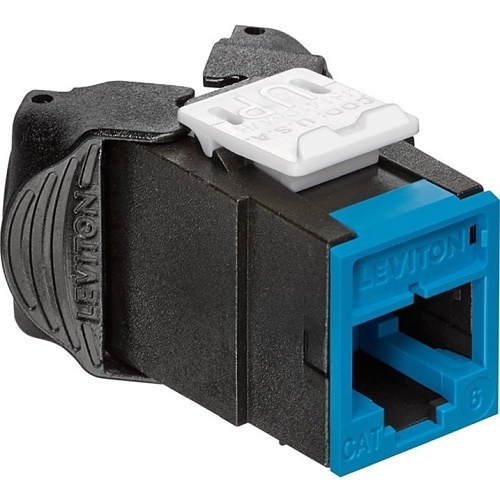

Leviton 61UJK-RL6 Atlas-X1 CAT6 UTP QuickPort Jack, Blue

61UJK-RL6

LV-61UJKRL6

Compare

Sign In for Dealer Pricing

New to ADI?Become a Customer

Data Sheet

Shop All Leviton

Leviton 61UJK-RL6 Atlas-X1 CAT6 UTP QuickPort Jack, Blue

61UJK-RL6 | LV-61UJKRL6

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

Atlas-X1 Cat 6 Component-Rated UTP QuickPort Jacks support 1000BASE-T networks. The jack is part of a complete Atlas-X1 Cat 6 UTP system, ideal for the most demanding mission-critical network applications. The jack supports emerging technologies and will easily adapt to network trends.

Main Features

Independently tested and guaranteed to exceed all component, permanent link, and channel margins
Patented Retention Force Technology (RFT) protects against tine damage and increases system longevity
For Power over Ethernet, RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects
Unique design supports tool-free termination/re-termination and requires no specialized termination tool
Short jack design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.)
Terminates from 26 to 22-gauge solid or stranded conductors for use on various cable types
Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 750 plug-mating cycles to ensure system longevity
Available in 13 ANSI/TIA-606-C compatible colors
Select jacks available with interchangeable icons (voice, data, A/V, and blank, color coded to match the jack face), for easy identification and tracking of data, voice, or other functions
Jack with internal shutter protects against dust and debris

General Information

Name: Leviton 61UJK-RL6 Atlas-X1 CAT6 UTP QuickPort Jack, Blue

Category: Leviton, Data Comm & Networking, Cable Connectors, Inserts & Adapters

UPC Code: 078477695937

Country of Origin: United States. Country of origin is subject to change.

Specifications

: ADI Part Number LV-61UJKRL6 Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 61UJK-RL6 Package Length 1.300000000 Packaged Quantity 1 Product Line Atlas-X1 Product Name Atlas-X1 Cat 6 UTP QuickPort Jack, Blue Product Type Network Connector

: Cable Type Category 6 Contact Plating Gold, Nickel Material Die-cast Zinc, Metal Shielding No

: Connector Type RJ45 Number of Contacts 10

: Color Blue Package Type Pack

: Mount Type Surface Mount

: Country of Origin US Environmental Certification RoHS 3 Environmentally Friendly Yes Features Dust Protection, PoE, Retention Force Technology (RFT), Stranded

Documents and Resources

Download All Documents

Product Data Sheet

Installation Instructions
