Leviton 67W09 Yellow Wallplate Receptacle Single 4-Port 3-Phase Cover
67W09
|LV-67W09
Shop all Leviton
Leviton 67W09 Yellow Wallplate Receptacle Single 4-Port 3-Phase Cover
67W09 | LV-67W09
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

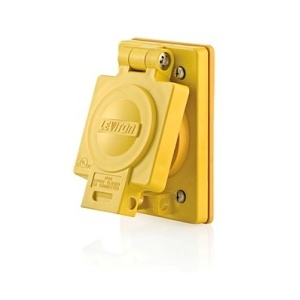

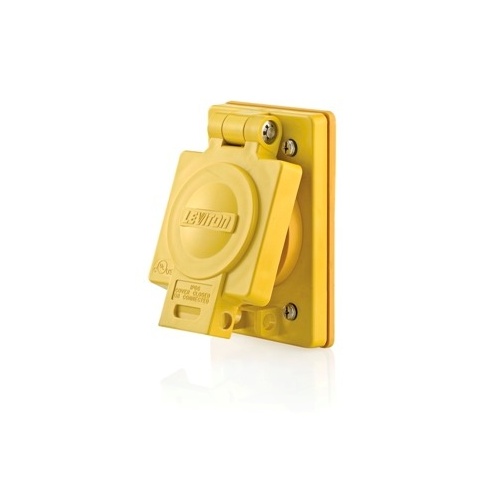

20 Amp, 120/208 Volt 3-Phase Y, Non-NEMA, 4P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Non-Grounding, Wetguard w/Cover - YELLOW
BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion
BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion
Main Features
- Receptacles with cover closed or used with wetguard plug connected meet IP66 standards
- Accept #14 through #8 AWG solid or stranded wire
- Fit all standard FD boxes
- Maintains IP66 water tight rating when box mounted using Leviton back boxes 452CR, 453CR, or 454CR
- Can be panel mounted (not IP66 rated)
- #6-32 mounting screws (4) included
General Information
Name: Leviton 67W09 Yellow Wallplate Receptacle Single 4-Port 3-Phase Cover
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-67W09 Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number 67W09 Product Line Wetguard Product Name Wetguard Watertight Flush Locking Receptacle Product Type Power Socket
Color Yellow
Current Rating 20 A Voltage Rating 120V AC, 208V AC
Limited Warranty Lifetime
Certifications & Standards Non-UL Country of Origin MX Package Contents - Wetguard Watertight Flush Locking Receptacle
- 4 x 6-32 Mounting Screws
