Product Overview

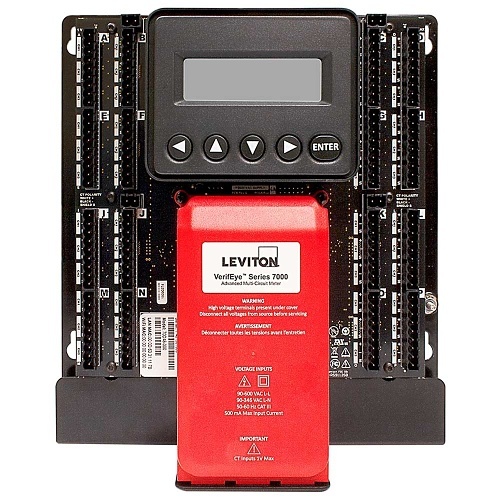

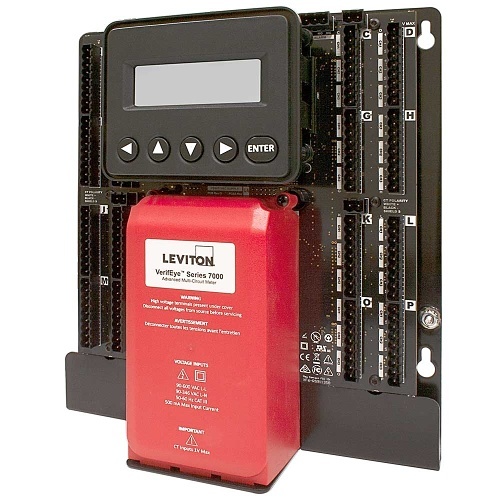

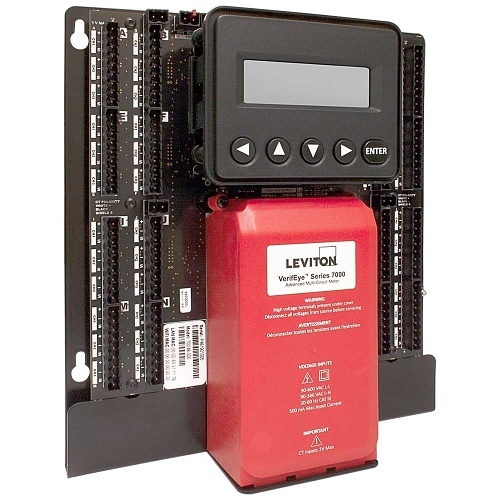

Series 7000 Dual Voltage, Embedded Panel Mount (no enclosure) Branch Circuit Monitor, 48 inputs, LCD display, SUBMETER ONLY. The VerifEye Series 7000 and 7100 Advanced Branch Circuit Monitor is a cost-effective solution for electrical load management. The Series 7000 and 7100 submetering platform is ideal for high density, branch circuit monitoring applications in both new construction and retrofit applications. The Series 7000 and 7100 submetering monitors up to 48 branch circuits with one single meter board.
Main Features
- 48 independent, user-defined inputs
- 2 independent sets of reference voltage inputs allow for simultaneous monitoring of multiple systems
- Line powered from 90-600V, phase-to-phase
- Meets ANSI and IEC metering system accuracy requirements including branch CTs
- Supports solid core, split core and Rogowski Coil CTs
- Easy access terminals for CT wiring, removable connectors
- Available with or without display embedded options
- Reports volts, amps, power, demand and energy for each circuit-each Series 7000 covers a complete 42 breaker panelboard plus mains for a total of 48 circuits
- Provides multi-phase totals for loads with any combination of 1-, 2-, and 3-pole breaker positions
- User-configurable alarm thresholds register for improved load management
General Information
Name: Leviton 70D48 UL508A Submetering Panel, 70D48, 2x3P Disconnects
Category: Leviton, Tools & Hardware, Electric Power Testing Tools, Multimeters
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-70D48 Brand Name Leviton Manufacturer Part Number 70D48 Product Name Submeter, Embedded Branch Circuit Monitor, 48 Inputs, LCD Display, No Enclosure Product Type Electric Submeter
Input Voltage 90-600V AC
