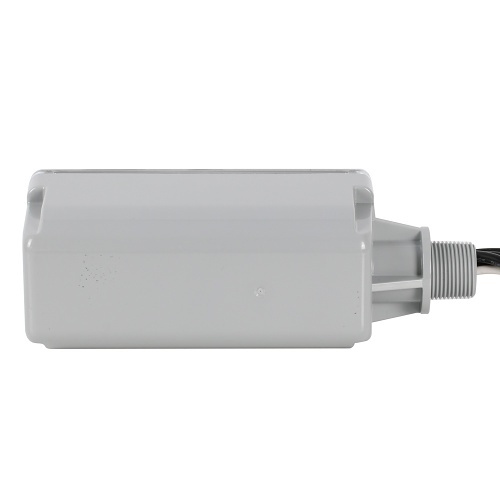

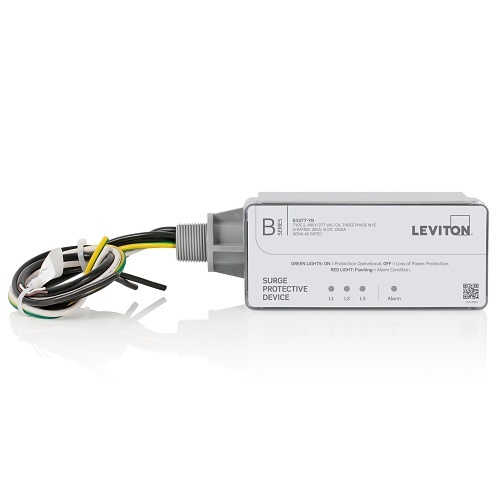

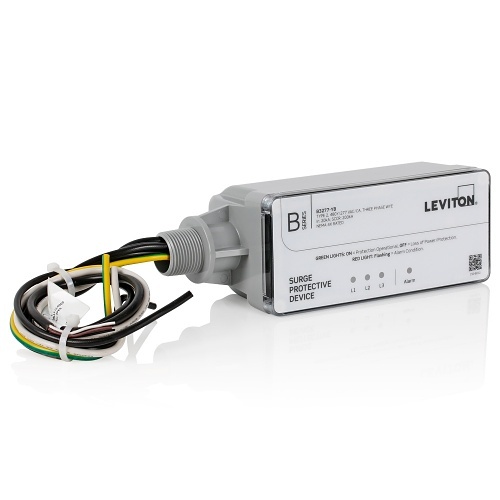

Image of LV-B3277YB
Shop all Leviton

Leviton B3277-YB B Series Type 2 Surge Protective Device, 480Y/277V AC, Three Phase WYE

B3277-YB|LV-B3277YB
Shop all Leviton

Leviton B3277-YB B Series Type 2 Surge Protective Device, 480Y/277V AC, Three Phase WYE

B3277-YB|LV-B3277YB
Key Features
  • The maximum amount of current the device is capable of diverting to ground during a single surge event without performance degradation of more than 10%
  • Higher values are better
  • The amount of current the device can divert to ground 15 times under specific test conditions and maintain performance levels
Key Features
  • The maximum amount of current the device is capable of diverting to ground during a single surge event without performance degradation of more than 10%
  • Higher values are better
  • The amount of current the device can divert to ground 15 times under specific test conditions and maintain performance levels

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • The maximum amount of current the device is capable of diverting to ground during a single surge event without performance degradation of more than 10%
  • Higher values are better
  • The amount of current the device can divert to ground 15 times under specific test conditions and maintain performance levels
Leviton

Leviton B3277-YB B Series Type 2 Surge Protective Device, 480Y/277V AC, Three Phase WYE

B3277-YB | LV-B3277YB

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

B Series Type 2 Surge Panel, 480Y/277 VAC, Three Phase WYE, Max Surge Current Rating of 65kA per Mode/130kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (ln) Rating, NEMA 4X Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 1200, L-G: 1200, N-G: 1200, L-L: 2500, Maximum Continuous Operating Voltage (MCOV): 350V/700V, Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, UL 1283 EMI/RFI Filtering, Approximate.

Main Features

  • The maximum amount of current the device is capable of diverting to ground during a single surge event without performance degradation of more than 10%
  • Higher values are better
  • The amount of current the device can divert to ground 15 times under specific test conditions and maintain performance levels
  • The maximum voltage a surge protector will let through to connected devices
  • Lower values are better
  • The maximum current a device or system can safely withstand for a specified time, or until a specified fuse or circuit breaker opens and clears the circuit
  • Maximum line voltage (or V rms) that may be applied to the SPD without damaging the MOV
  • A lower MCOV rating allows for a lower VPR, but decreases the life of an MOV
  • A mode is a path that has an SPD component between two electrical points

General Information

Name: Leviton B3277-YB B Series Type 2 Surge Protective Device, 480Y/277V AC, Three Phase WYE
Category: Leviton, Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules
UPC Code:
Country of Origin: . Country of origin is subject to change.
