Leviton E5325-W 15A Lever Edge T Amper-Resistant Duplex Outlet, White
E5325-W|LV-E5325W
Leviton E5325-W 15A Lever Edge T Amper-Resistant Duplex Outlet, White
E5325-W|LV-E5325W
Key Features
- Provides the traditional appearance and superior performance of Decora® devices in a new, faster, easier-to-install, and safer design
- Patent pending lever terminals for fast, efficient wiring
- Color-coded lever terminals reduces risk of miswiring
Key Features
- Provides the traditional appearance and superior performance of Decora® devices in a new, faster, easier-to-install, and safer design
- Patent pending lever terminals for fast, efficient wiring
- Color-coded lever terminals reduces risk of miswiring
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Provides the traditional appearance and superior performance of Decora® devices in a new, faster, easier-to-install, and safer design
- Patent pending lever terminals for fast, efficient wiring
- Color-coded lever terminals reduces risk of miswiring
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

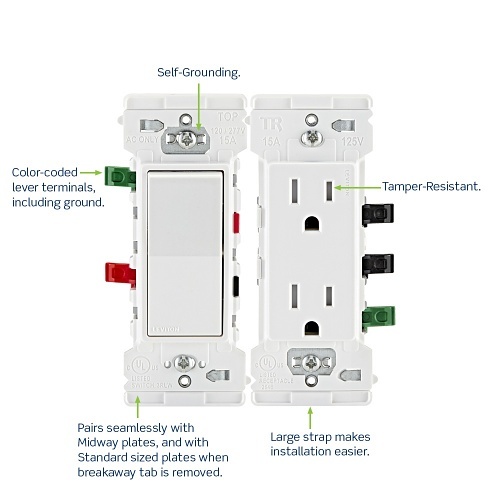

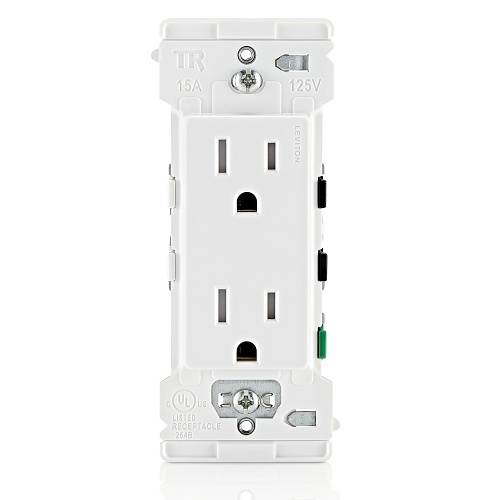

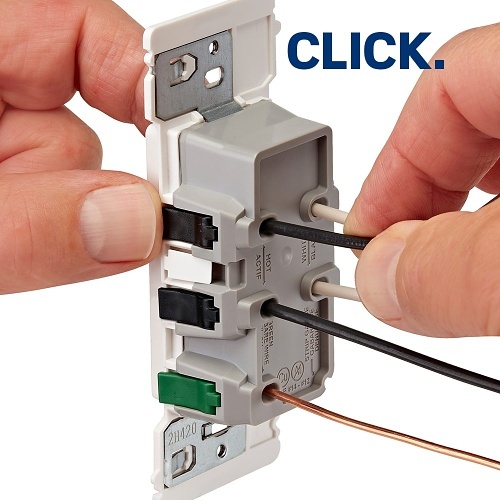

15 Amp, 125 Volt, NEMA; 5-15R, 2 Pole, 3-Wire, Straight Blade, Decora Duplex Tamper-Resistant Outlet, Self-grounding, UL/CSA, NEC compliant - White FASTER – Patent-pending lever terminals for fast, efficient wiring. As Easy as PUSH. CLICK. DONE EASIER – Large strap makes installations easier as well as the ability to use 14 gauge and 12 gauge stranded and solid copper wire SAFER – No exposed metal parts for enhanced safety CONVENIENT – Color-coded lever terminals to help prevent miswiring COMPATIBLE – Coordinates seamlessly with other Decora devices and can be used with any sized Decora wallplate.
Main Features
- Provides the traditional appearance and superior performance of Decora® devices in a new, faster, easier-to-install, and safer design
- Patent pending lever terminals for fast, efficient wiring
- Color-coded lever terminals reduces risk of miswiring

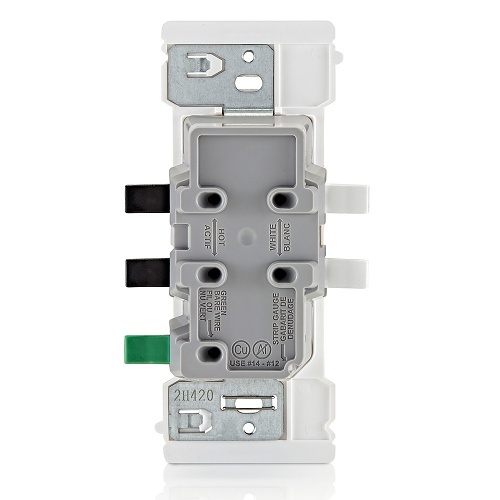

- Lever doors have snap feature to assure connection has been made; audible click confirms lever door is closed
- Only Residential device on the market with a quick termination ground wire
- No exposed metal parts for enhanced safety; eliminates need for electrical tape
- Strap’s unique tongue and groove alignment offers quicker trim out on multi-gang installations
- Lever connectors work with 14 gauge and 12 gauge stranded and solid copper wire
- Wire openings prevent wire insulation from being inserted into the terminals
- One standard strip gauge for all devices
General Information
Name: Leviton E5325-W 15A Lever Edge T Amper-Resistant Duplex Outlet, White
Category: Leviton, Batteries & Power Supplies, Electrical Plugs & Connectors, Single & Duplex Outlets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number LV-E5325W Brand Name Leviton Manufacturer Part Number E5325-W Product Name Lever Edge 15A TAer-Resistant Duplex Outlet, White Product Type Receptacle
-
Color White
-
Current Rating 15A
-
Limited Warranty 2-Year
-
Country of Origin CN
