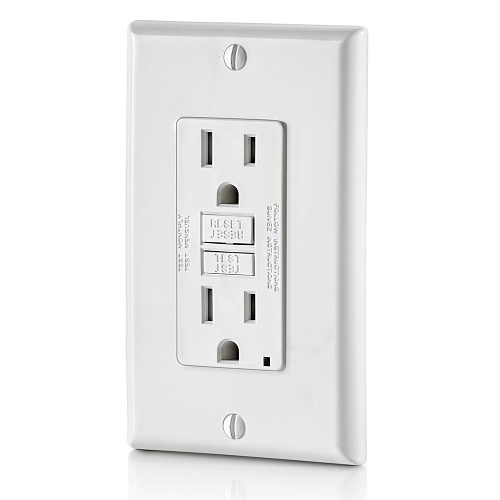

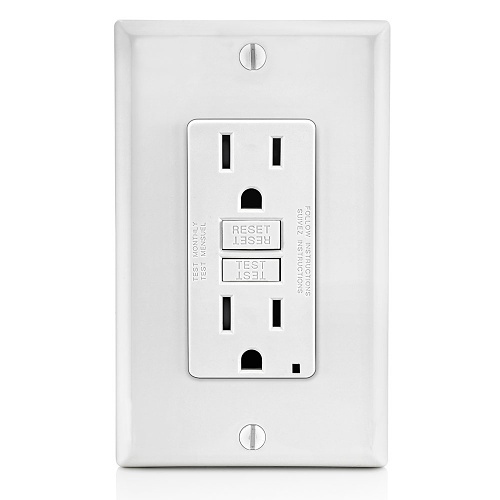

Leviton GFTR1-FW Self Test Tamper-Resistant SmartlockPro GFCI Receptacle / Outlet, 5-15R, 15A 125V, White
GFTR1-FW
|LV-GFTR1FW
Shop All Leviton
Leviton GFTR1-FW Self Test Tamper-Resistant SmartlockPro GFCI Receptacle / Outlet, 5-15R, 15A 125V, White
GFTR1-FW | LV-GFTR1FW
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro GFCI, Monochromatic, back and side wired, nylon wallplate/faceplate, screws and self-grounding clip included, USMCA Compliant - WHITE
SAFE - Delivers continuous ground fault protection
SELF TESTING - Automatically self-tests to ensure it can respond to ground fault
SIMPLE - Status indicator light provides simple, intuitive feedback
SAFE - Delivers continuous ground fault protection
SELF TESTING - Automatically self-tests to ensure it can respond to ground fault
SIMPLE - Status indicator light provides simple, intuitive feedback
Main Features
- Provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
General Information
Name: Leviton GFTR1-FW Self Test Tamper-Resistant SmartlockPro GFCI Receptacle / Outlet, 5-15R, 15A 125V, White
Category: Leviton, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-GFTR1FW Brand Name Leviton Country of Origin MX Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number GFTR1-FW Product Line SmartlockPro Product Name 15 Amp SmartlockPro GFCI Receptacle/Outlet, Tamper-Resistant Product Type Power Socket
Receptacle Type NEMA 5-15R
Certifications & Standards NEMA WD6, UL/CSA RoHS Compliant Not Compliant
Color White Material Polycarbonate, Steel
Current Rating 15.00A Voltage Rating 125V AC
Limited Warranty 2-Year
Features Self-Test Package Contents - 15 Amp SmartlockPro GFCI Receptacle/Outlet, Tamper-Resistant
- Screws
- Self-Grounding Clip
- Wallplate
