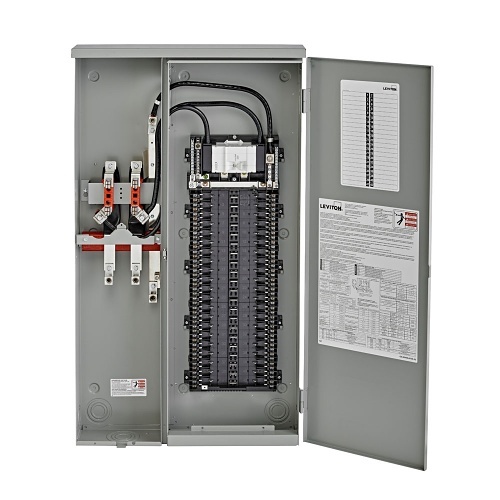

Leviton LJ422-BED Meter Load Center Combo, EUSERC, Ring Type, 42-Space, 225A
LJ422-BED
|LV-LJ422BED
Shop all Leviton
Leviton LJ422-BED Meter Load Center Combo, EUSERC, Ring Type, 42-Space, 225A
LJ422-BED | LV-LJ422BED
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Outdoor All-In-One Meter Load Center Combination with 225A Main Circuit Breaker Factory Installed, 42 Spaces, NEMA 3R Rate. Side-by-Side Construction, Surface Moun. Includes Enclosure and Ring-Type Doo. For applications up to 60A when using copper wire; or 50A when using aluminum wire Designed for Leviton Circuit Breaker.
Main Features
- Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- All Leviton Load Centers come standard equipped with tin plated copper bussing rated to 225A
- Notches stamped into the Enclosure for cable ties promote secure and neat wiring
- EUSERC Approved
- Features 225A rated bussing for maximum PV backfeed capabilities
General Information
Name: Leviton LJ422-BED Meter Load Center Combo, EUSERC, Ring Type, 42-Space, 225A
Category: Leviton, Data Comm & Networking, Racks & Enclosures, Structured Wiring Enclosures
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-LJ422BED Brand Name Leviton Manufacturer Part Number LJ422-BED
Material Galvanized Steel, Gray Baked Enamel
Color Gray Depth 5.2" Height 43.5" Weight 103lb Width 25"
Input Voltage 120V, 240V AC
Limited Warranty 10-Year
Certifications & Standards UL Listed
