Image of LV-O2C15IDW
Shop all Leviton

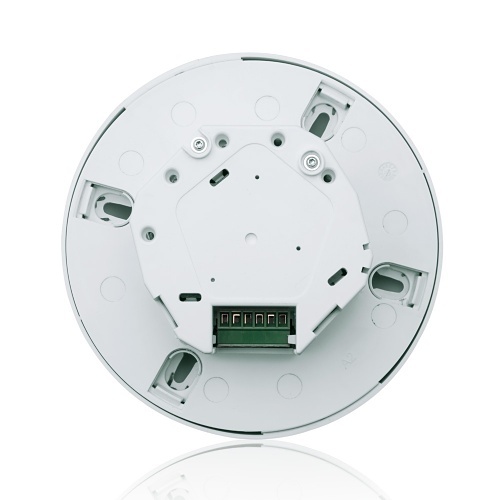

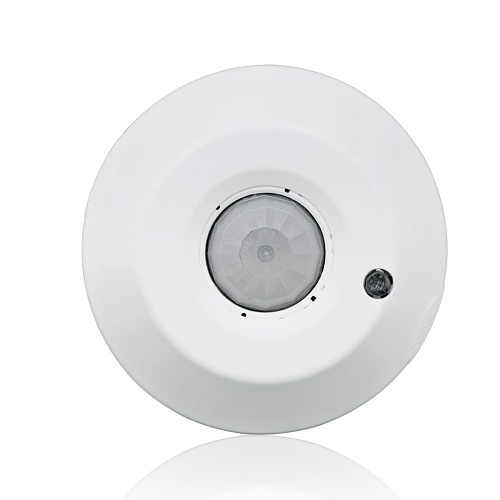

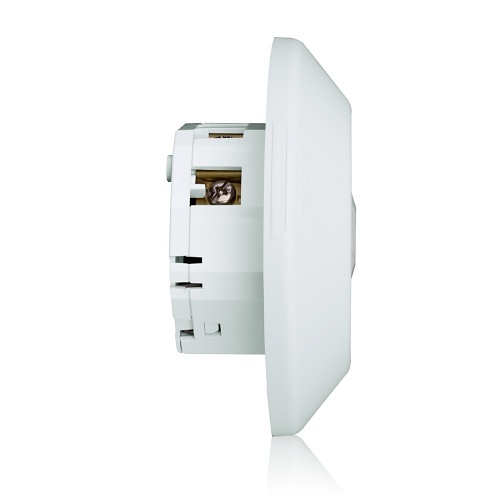

Leviton O2C15-IDW Occupancy Sensor with Integrated Photocell, Dual Relay, Ceiling Mount, 120-277V, White

O2C15-IDW|LV-O2C15IDW
Shop all Leviton

Leviton O2C15-IDW Occupancy Sensor with Integrated Photocell, Dual Relay, Ceiling Mount, 120-277V, White

O2C15-IDW|LV-O2C15IDW
Key Features
  • Uses industry-exclusive digital (4 element) PIR circuitry for fewer false triggers from unwanted sources such as HVAC system. A Fresnel lens establishes dozens of detection zones requiring the heat source to move from one zone to another to trigger the sensor
  • Auto-Adapting; Time delay and sensitivity are continually adjusted to occupancy pattern of use
  • Configurable for Manual ON/Auto OFF or Auto ON/Auto OFF
Key Features
  • Uses industry-exclusive digital (4 element) PIR circuitry for fewer false triggers from unwanted sources such as HVAC system. A Fresnel lens establishes dozens of detection zones requiring the heat source to move from one zone to another to trigger the sensor
  • Auto-Adapting; Time delay and sensitivity are continually adjusted to occupancy pattern of use
  • Configurable for Manual ON/Auto OFF or Auto ON/Auto OFF

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Uses industry-exclusive digital (4 element) PIR circuitry for fewer false triggers from unwanted sources such as HVAC system. A Fresnel lens establishes dozens of detection zones requiring the heat source to move from one zone to another to trigger the sensor
  • Auto-Adapting; Time delay and sensitivity are continually adjusted to occupancy pattern of use
  • Configurable for Manual ON/Auto OFF or Auto ON/Auto OFF
Leviton

Leviton O2C15-IDW Occupancy Sensor with Integrated Photocell, Dual Relay, Ceiling Mount, 120-277V, White

O2C15-IDW | LV-O2C15IDW

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Discontinued Produc. Occupancy Sensor with Photocell, Provolt lighting control, 2-Pole, Line Voltage, 8'-12' Ceiling Mount, Passive Infrared, Daylighting, Auto-Calibration, 1500 sq ft, 120-277VAC/CA 50/60H. UL/CE, RoHS and CEC Title 20/24 complian. Color; White. The Leviton Provolt Series combine line voltage occupancy sensors and photocells into a self-contained uni. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low-cost, efficient energy solution for new construction and retrofit.

Main Features

  • Uses industry-exclusive digital (4 element) PIR circuitry for fewer false triggers from unwanted sources such as HVAC system. A Fresnel lens establishes dozens of detection zones requiring the heat source to move from one zone to another to trigger the sensor
  • Auto-Adapting; Time delay and sensitivity are continually adjusted to occupancy pattern of use
  • Configurable for Manual ON/Auto OFF or Auto ON/Auto OFF
  • Delayed OFF Timer; The sensor will turn lights OFF if no motion is detected after a specified time
  • Exclusive Walk-through Feature; Provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
  • False Detection Timer; (M/T) The PIR scans for movement and shuts lights off after 31 minutes preventing false triggers from HVAC systems
  • Output short circuit protection
  • Industry-exclusive self-configuring local manual switch input; Momentary or maintained switches are supported
  • Presentation Mode feature for slide or film presentations allows push buttons to turn lights OFF and keep them OFF while the room is occupied
  • Adjustable Time Delay; 30s, 5min, 10min, 20min, 30min

General Information

Name: Leviton O2C15-IDW Occupancy Sensor with Integrated Photocell, Dual Relay, Ceiling Mount, 120-277V, White
Category: Leviton, Intrusion, Motion & Perimeter Sensors, PIR Motion Sensors
UPC Code:
Country of Origin: . Country of origin is subject to change.
