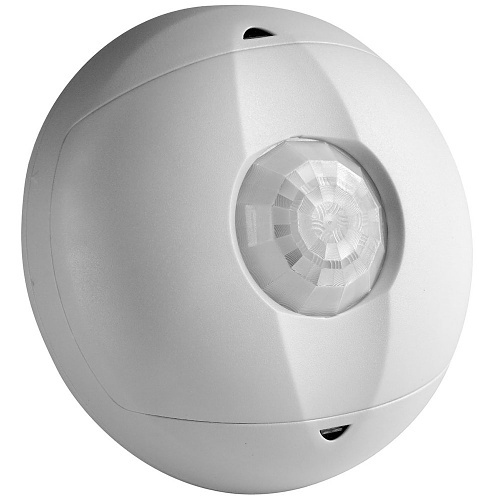

Leviton OSC04-IAW PIR Ceiling Occupancy Sensor, 24V DC, White
OSC04-IAW | LV-OSC04IAW
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Occupancy Sensor low voltage lighting control, Ceiling Mounted. 450sq. ft. Coverage. Passive Infrared Only. High Density Fresnel Lens 24V DC, Class II, C-UL-US Listed/NOM Required, FCC/ CA Title 24 Compliant. Made in USA with globally sourced components. The OSCxx-I0W is a Passive Infrared (PIR) ceiling mount, low voltage occupancy sensor that works in conjunction with the Leviton OSPxx Power Pack to control lighting.
Main Features
- Small Size; Installed sensor appears almost invisible
- Fast Simple Installation; Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment
- Accurate, Consistant Switching; Occupant complaints are eliminated, lights are on when room is occupied, off when empty, annoying false-offs are minimized and lights on at night is eliminated
- Self-Adapting; An internal microprocessor continually analyzes, evaluates and adjusts settings, Performance is kept at a maximum and user complaints are eliminated
- Maximum Reliability, Low Cost; All digital circuitry uses a minimum of components
- Non-Volatile Memory; Learned and adjusted settings saved in protected memory
- Power outages will not cause status loss
- Ambient Light Recognition; The photocell prevents lights from turning on when room is adequately lit by natural light
- Typical Applications; closet, copy room, small office, storage room, lounge, non-partitioned restroom or vending room
General Information
Name: Leviton OSC04-IAW PIR Ceiling Occupancy Sensor, 24V DC, White
Category: Leviton, Intrusion, Motion & Perimeter Sensors, PIR Motion Sensors
UPC Code: 078477508596
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-OSC04IAW Brand Name Leviton Manufacturer Part Number OSC04-IAW Product Line OSC04 Product Name Occupancy Sensor, PIR, Ceiling Mount, 450SF, White Product Type Occupancy Sensor
Application/Usage Classrooms, Conference Rooms, Copy rooms, Hallways, Open areas, Open warehouses, Private restrooms, Small offices, Storage rooms, Utility closets, Vending rooms, Workspaces Maximum Motion Sensing Distance 450' Sensor Type Passive Infrared
Color White Height 1.57" Width 4.2"
Input Voltage 24V DC
Mount Type Ceiling Mount
Limited Warranty 5-Year
Environmental Certification can be used to comply with Title 24, cUL/US Certified, Part 6 occupancy sensing requirements Environmentally Friendly Yes
