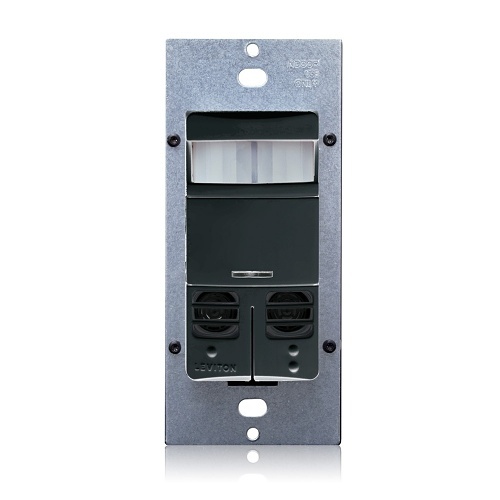

Leviton OSSMD-MAE Dual Relay Wall Box Multi-Tech Occupancy Sensor with Neutral Wire, 120-277VAC, Black

OSSMD-MAE | LV-OSSMDMAE

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

Dual Relay, Wall Box, Multi-Tech Occupancy Sensor, with a neutral wir. 120/208/220/230/240/277v; 50/60Hz, CEC Title 20/24 complian. Made in USA with globally sourced component. Color; Black, OSSMD dual relay occupancy sensors combine Passive Infrared (PIR) and Ultrasonic (U/S) motion detection technologies in a single sensor to keep lights ON while a space is occupied and turn lights OFF when vacan.

Main Features

Provides automatic lighting control for two separate banks of fluorescent, incandescent, or low-voltage lighting from a single unit
The second relay is a manual-ON only with a maximum 30 minute time-out for maximum energy savings to comply with CEC Title 24
Fits in a standard single-gang wall box and replaces two single-pole wall-switches for fast and easy installation; neutral and ground connection required for OSSMD-M. OSSMD-GD does not require a neutral for installation
Low-profile design eliminates obtrusive “scanning-device” loo. Elegant Decora wallplates complement any interior for sleek aesthetics; uses Decora wallplates and coordinates with Leviton’s popular line of Decora wiring devices
180° field-of-view provides approximately 2400 square feet of coverage, suitable for a variety of commercial areas
Convenient pushbuttons provide manual-ON/OFF light switching of each load at any time
Segmented Fresnel lens provides optimum sensitivity and performance. Designed with an extensive “minor motion” area where even slight body movements will be detected
Vandal resistant PIR lens
Adjustable horizontal field-of-view (PIR) may be adjusted between 180° and 60° of arc by using integral blinders located on either side of the len. No masking tape required
Manual-ON/auto-OFF mode for installations where manual-ON switching is required but auto-OFF switching is still desired for CEC Title 24 energy savings

General Information

Name: Leviton OSSMD-MAE Dual Relay Wall Box Multi-Tech Occupancy Sensor with Neutral Wire, 120-277VAC, Black

Category: Leviton, Intrusion, Motion & Perimeter Sensors, PIR Motion Sensors

UPC Code:

Country of Origin: . Country of origin is subject to change.

Specifications

: ADI Part Number LV-OSSMDMAE Brand Name Leviton Manufacturer Part Number OSSMD-MAE

: Application/Usage Bi-Level or A/B Switching, Classrooms, Conference rooms, Day care centers, Lounges, Multi-Location Switching, Multimedia Rooms, Private and Executive Offices, Restrooms, Retrofits, Storage areas, Training Areas Maximum Time Delay 30-Minute Sensor Type Occupancy

: Color Black

: Input Voltage 120V, 230V, 277V AC

: Mount Type Wall Mount

: Limited Warranty 5-Year
