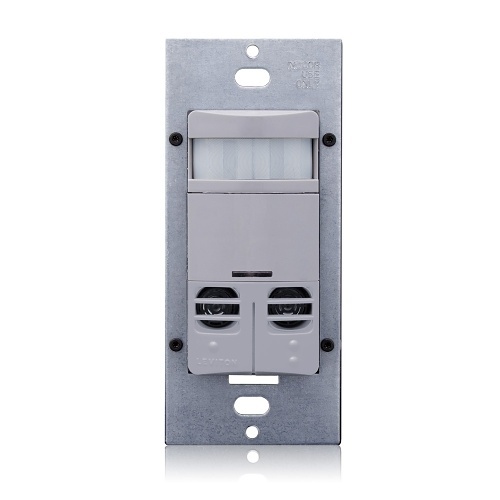

Leviton OSSMD-MAG Dual Relay Wall Box Multi-Tech Occupancy Sensor with Neutral Wire, 120-277VAC, Gray
OSSMD-MAG|LV-OSSMDMAG
Leviton OSSMD-MAG Dual Relay Wall Box Multi-Tech Occupancy Sensor with Neutral Wire, 120-277VAC, Gray
OSSMD-MAG|LV-OSSMDMAG
Key Features
- Provides automatic lighting control for two separate banks of fluorescent, incandescent, or low-voltage lighting from a single unit
- The second relay is a manual-ON only with a maximum 30 minute time-out for maximum energy savings to comply with CEC Title 24
- Fits in a standard single-gang wall box and replaces two single-pole wall-switches for fast and easy installation; neutral and ground connection required for OSSMD-M. OSSMD-GD does not require a neutral for installation
Key Features
- Provides automatic lighting control for two separate banks of fluorescent, incandescent, or low-voltage lighting from a single unit
- The second relay is a manual-ON only with a maximum 30 minute time-out for maximum energy savings to comply with CEC Title 24
- Fits in a standard single-gang wall box and replaces two single-pole wall-switches for fast and easy installation; neutral and ground connection required for OSSMD-M. OSSMD-GD does not require a neutral for installation
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Provides automatic lighting control for two separate banks of fluorescent, incandescent, or low-voltage lighting from a single unit
- The second relay is a manual-ON only with a maximum 30 minute time-out for maximum energy savings to comply with CEC Title 24
- Fits in a standard single-gang wall box and replaces two single-pole wall-switches for fast and easy installation; neutral and ground connection required for OSSMD-M. OSSMD-GD does not require a neutral for installation
Leviton
Leviton OSSMD-MAG Dual Relay Wall Box Multi-Tech Occupancy Sensor with Neutral Wire, 120-277VAC, Gray
OSSMD-MAG | LV-OSSMDMAG
Please sign in to view pricing and availability and to add to cart.
Accessories
Magnetic Contacts
ADI # 0E-SRFMTOD2W
MODEL # 0E-SRFMTOD2W
0E-SRFMTOD2W|0E-SRFMTOD2W
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Dual Relay, Wall Box, Multi-Tech Occupancy Sensor, with a neutral wir. 120/208/220/230/240/277v; 50/60Hz, CEC Title 20/24 complian. Made in USA with globally sourced component. Color; Grey, OSSMD dual relay occupancy sensors combine Passive Infrared (PIR) and Ultrasonic (U/S) motion detection technologies in a single sensor to keep lights ON while a space is occupied and turn lights OFF when vacan.
Main Features
- Provides automatic lighting control for two separate banks of fluorescent, incandescent, or low-voltage lighting from a single unit
- The second relay is a manual-ON only with a maximum 30 minute time-out for maximum energy savings to comply with CEC Title 24
- Fits in a standard single-gang wall box and replaces two single-pole wall-switches for fast and easy installation; neutral and ground connection required for OSSMD-M. OSSMD-GD does not require a neutral for installation
- Low-profile design eliminates obtrusive “scanning-device” loo. Elegant Decora wallplates complement any interior for sleek aesthetics; uses Decora wallplates and coordinates with Leviton’s popular line of Decora wiring devices

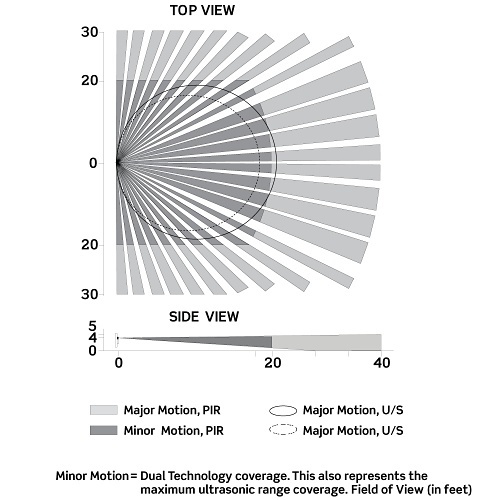

- 180° field-of-view provides approximately 2400 square feet of coverage, suitable for a variety of commercial areas

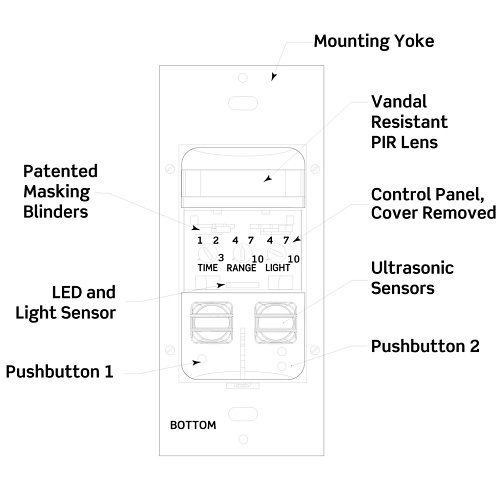

- Convenient pushbuttons provide manual-ON/OFF light switching of each load at any time
- Segmented Fresnel lens provides optimum sensitivity and performance. Designed with an extensive “minor motion” area where even slight body movements will be detected
- Vandal resistant PIR lens
- Adjustable horizontal field-of-view (PIR) may be adjusted between 180° and 60° of arc by using integral blinders located on either side of the len. No masking tape required
- Manual-ON/auto-OFF mode for installations where manual-ON switching is required but auto-OFF switching is still desired for CEC Title 24 energy savings
General Information
Name: Leviton OSSMD-MAG Dual Relay Wall Box Multi-Tech Occupancy Sensor with Neutral Wire, 120-277VAC, Gray
Category: Leviton, Intrusion, Motion & Perimeter Sensors, PIR Motion Sensors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number LV-OSSMDMAG Brand Name Leviton Manufacturer Part Number OSSMD-MAG
-
Maximum Time Delay 30s-30m Sensor Type Occupancy
-
Application/Usage Bi-Level or A/B Switching, Classrooms, Conference Rooms, Day Care Centers, Lounges, Multi-Location Switching, Multimedia Rooms, Private and executive offices, Restrooms, Retrofits, Storage areas, Training areas Color Gray
-
Input Voltage 120V, 230V, 277V AC
-
Mount Type Wall Mount
-
Limited Warranty 5-Year
