Leviton OSSMT-MQE Multitech Wall Sensor Auto On/Off with Neutral, Ebony
OSSMT-MQE
|LV-OSSMTMQE
Shop All Leviton

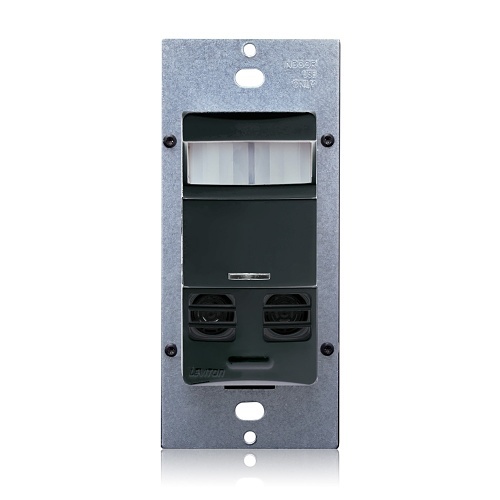

Leviton OSSMT-MQE Multitech Wall Sensor Auto On/Off with Neutral, Ebony
OSSMT-MQE | LV-OSSMTMQE
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Multi-Tech wall box occupancy sensor w/neutral wire lighting control, Auto on/Auto off only (no manual override), 120/208/220/230/240/277v, 50/60Hz, CEC Title 20/24 Compliant, 30s-30m Time Delays, Ambient Light Override, Self Adjusting, Field Configurable, USMCA Compliant, Color- Black. Leviton's OSSMT Multi-Technology Decora Wall Switch Occupancy Sensor is used to provide automatic lighting control for energy savings and convenience in a variety of commercial applications. A wallbox occupancy sensor switch is a lighting control also known as a motion sensor or motion detector.
Main Features
- Fits in a standard wall box and replaces a single-pole wall-switch
- Low-profile design eliminates obtrusive "scanning-device" look
- Segmented Fresnel lens provides optimum sensitivity and performance
- Vandal resistant PIR lens
- Adjustable horizontal field-of-view
- LED Indicator light flashes when sensor detects motion to verify detection is active
- Integrated light sensor prevents lights from turning on when the room is adequately illuminated by natural light
- Time delay and sensitivity settings are continually adjusted to occupant patterns of use in auto adapt mode
- False detection circuitry
- Ultrasonic technology provides excellent minor motion sensitivity
General Information
Name: Leviton OSSMT-MQE Multitech Wall Sensor Auto On/Off with Neutral, Ebony
Category: Leviton, Smart Home, Smart Dimmers & Light Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LV-OSSMTMQE Application/Usage Public restrooms, School restrooms, Recreational rooms, Mechanical rooms Brand Name Leviton Country of Origin MX Manufacturer Part Number OSSMT-MQE Product Line OSSMT Product Name Occupancy Sensor, Multi-Technology (PIR Sensor / Ultrasonic Sensor), Wall Switch Product Type Switch
Control Type Switch Controllable Function Light Control Power Consumption 0.4800W Sensor Type Proximity Sensor Wiring Type Neutral Required
Certifications & Standards UL/cUL RoHS Compliant Not Compliant
Operating Temperature (T-T) 0°C to 40°C Storage Temperature (T-T) 14°F to 185°F(-10°C to 85°C)
Color Black Depth 1.85" Dimensions 4.06" x 1.75" x 1.85" Height 4.06" Width 1.75"
Input Voltage 120-277V AC
Mount Type In-wall Mount Switch Type Single-Pole
Limited Warranty 5-Year
Features Auto ON/Auto OFF Only
