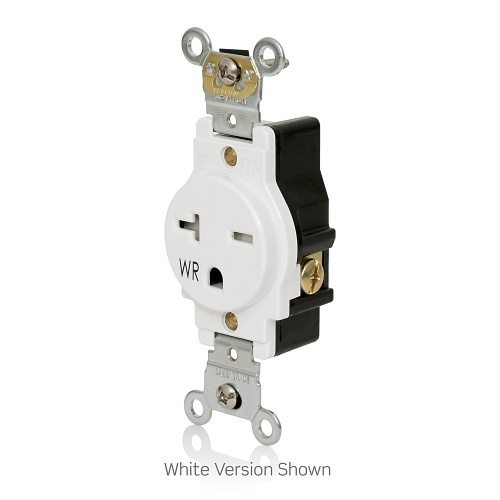

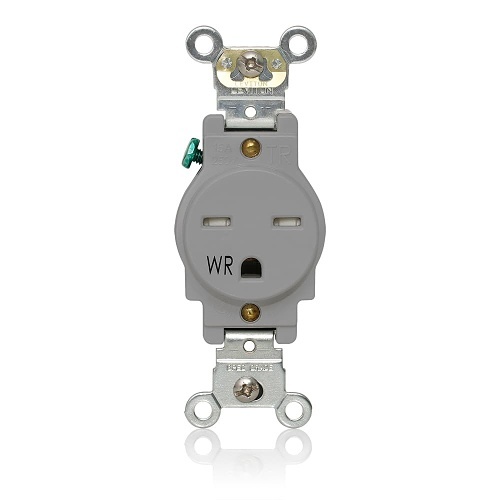

Leviton W5661-TGY Weather and Tamper-Resistant Single Receptacle, 15A, 250V, Gray
W5661-TGY|LV-W5661TGY
Leviton W5661-TGY Weather and Tamper-Resistant Single Receptacle, 15A, 250V, Gray
W5661-TGY|LV-W5661TGY
Key Features
- Accommodates back and side wiring
- Nickel-plated steel strap maximizes corrosion resistance
- Brass-self grounding clip is permanently staked on for secure and reliable performance
Key Features
- Accommodates back and side wiring
- Nickel-plated steel strap maximizes corrosion resistance
- Brass-self grounding clip is permanently staked on for secure and reliable performance
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Accommodates back and side wiring
- Nickel-plated steel strap maximizes corrosion resistance
- Brass-self grounding clip is permanently staked on for secure and reliable performance

Leviton
Leviton W5661-TGY Weather and Tamper-Resistant Single Receptacle, 15A, 250V, Gray
W5661-TGY | LV-W5661TGY
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Single Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Weather- and Tamper-Resistant, Smooth Face, 15 Amp, 250 Volt, Back and Side Wire, NEMA 6-15R, 2-Pole, 3-Wire, Self-Grounding - Gray
Leviton's 250 Volt Tamper-Resistant Receptacles are the industry's first and only solution to the revisions of the NEC Article 406.12!
These weather-resistant single receptacles also provide compliance for Article 406.9 of the NEC for wet and damp locations and include added protection against corrosion, UV degradation and cold impact damage.

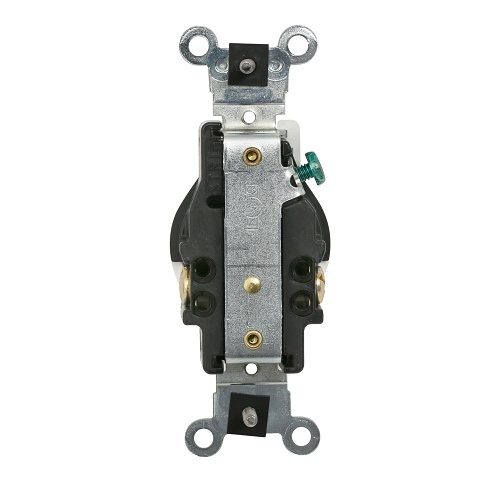

Accommodates back and side wiring
Nickel-plated steel strap maximizes corrosion resistance
Brass-self grounding clip is permanently staked on for secure and reliable performance
Common applications: education facilities, commercial buildings, health care facilities, hospitality, and multiple dwelling units (MDUs)
Leviton's 250 Volt Tamper-Resistant Receptacles are the industry's first and only solution to the revisions of the NEC Article 406.12!
These weather-resistant single receptacles also provide compliance for Article 406.9 of the NEC for wet and damp locations and include added protection against corrosion, UV degradation and cold impact damage.
Accommodates back and side wiring
Nickel-plated steel strap maximizes corrosion resistance
Brass-self grounding clip is permanently staked on for secure and reliable performance
Common applications: education facilities, commercial buildings, health care facilities, hospitality, and multiple dwelling units (MDUs)
Main Features
- Accommodates back and side wiring
- Nickel-plated steel strap maximizes corrosion resistance
- Brass-self grounding clip is permanently staked on for secure and reliable performance
- Common applications; education facilities, commercial buildings, health care facilities, hospitality, and multiple dwelling units (MDUs)
General Information
Name: Leviton W5661-TGY Weather and Tamper-Resistant Single Receptacle, 15A, 250V, Gray
Category: Leviton, Batteries & Power Supplies, Electrical Plugs & Connectors, Power Connectors
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number LV-W5661TGY Brand Name Leviton Manufacturer Leviton Mfg. Company, Inc Manufacturer Part Number W5661TGY Product Name Weather- and Tamper-Resistant Single Receptacle, 15 Amp 250 Volt, Gray Product Type Power Socket
-
Receptacle Type NEMA 6-15R
-
Color Gray
-
Current Rating 15 A Voltage Rating 250 V AC
-
Country of Origin MX
