Key Features
- 4MP Turret housing
- 2.8mm Lens
- LumiLuxSmart, IR and White-Light LEDs
Key Features
- 4MP Turret housing
- 2.8mm Lens
- LumiLuxSmart, IR and White-Light LEDs
Key Features
- 4MP Turret housing
- 2.8mm Lens
- LumiLuxSmart, IR and White-Light LEDs

Please sign in to view pricing and availability and to add to cart.
Accessories
Video Surveillance Monitors
Sign In for Dealer Pricing
Mounting Plates
Sign In for Dealer Pricing
Camera Mounts
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Luminys is lighting a way to a more flexible solution with the industry's most extensive dual-functioning camera portfolio for low-light scenes. Our comprehensive suite of innovative lighting technologies allows you to seamlessly transition from dark, grainy black-and-white images to fully lit scenes for identifying objects in color or infrared (IR) illumination for covert operations.
The 4MP LumiLuxSmart is part of Luminys's N5 mainstream series of security devices, designed with a suite of advanced LumiTechnologies to meet the evolving needs of today's security market. With the LumiLuxSmart portfolio, installers have the power of choice - they can customize these cameras for deterrence, covertness, or a combination of the two modes, allowing them to standardize on a single camera and save time and money.
These all-in-one cameras offer installers three flexible low-light modes to capture the best images regardless of lighting conditions: IR only, white light only, and motion-based IR and white light. Moreover, the brightness of the white-light LEDs can be remotely adjusted for less intensity.
The motion-based IR and white-light LED mode allows cameras to capture clear, full-color video day or night. When motion is detected, the cameras automatically switch from IR LEDs to white-light LEDs to illuminate the scene, then switch back to IR mode once motion has ceased, preventing light pollution and improving energy efficiency.
Main Features
- 4MP Turret housing
- 2.8mm Lens
- LumiLuxSmart, IR and White-Light LEDs
- Video Content Analytics+, Line Crossing, Intrusion, Loitering Detection, Parking Detection
- LumiAnalytics, Face Detection, People Counting, Heat Map, LumiSearch+
- iMD, Queue Management, Smart Object Detection
- LumiPower (extends distance up to 3,000')
General Information

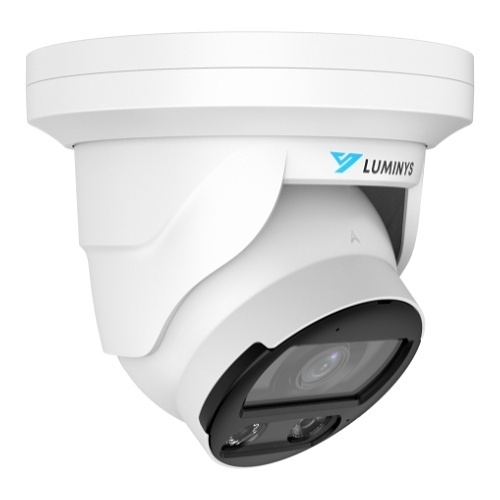

Name: Luminys N5T-4LA2 4MP LumiLuxSmart Turret IP Camera, 2.8mm Lens
Category: Video Surveillance, IP Cameras, Turret Cameras
UPC Code: 810161160617
Country of Origin: Vietnam. Country of origin is subject to change.
Specifications
-
ADI Part Number LY-N5T4LA2 Brand Name Luminys Manufacturer Part Number N5T-4LA2 Product Line LumiLuxSmart Product Name 4MP Network LumiLuxSmart Turret Camera (2.8 mm) Product Series N5-L Product Type Camera Weight 1.7lb
-
Effective Camera Resolution 4MP Field of View Diagonal, Horizontal, Vertical Lens Type Fixed Maximum Aperture f/1.0 Maximum Frame Rate 30fps Night Vision Yes Night Vision Type Infrared (IR) Video Formats H.264, H.265, MJPEG
-
Image Sensor Type CMOS Night Vision Distance 98.4' Wide Dynamic Range Yes
-
Ingress Protection Rating IP67 NDAA Compliant Yes
-
Maximum Video Resolution 2688 x 1520
-
Maximum Operating Temperature 140°F Minimum Operating Temperature -40°F Operating Humidity 0.95
-
Longest Shutter Speed 1/3 Second Minimum Illumination 0.0005|0.0003|0 lux Shortest Shutter Speed 1/100000 Second
-
Focal Length 2.8 mm Lens Included Yes Maximum Focal Length 2.8 mm
-
ADI Part Number Replaces VD-N45FJ62 Model Number Replaces N45FJ62
-
Form Factor Turret Height 5.1"
-
Input Voltage 12V DC
-
Diameter 5.6"
-
Storage Type Memory Card
-
Environmental Certification FCC, IC, NDAA, UL
