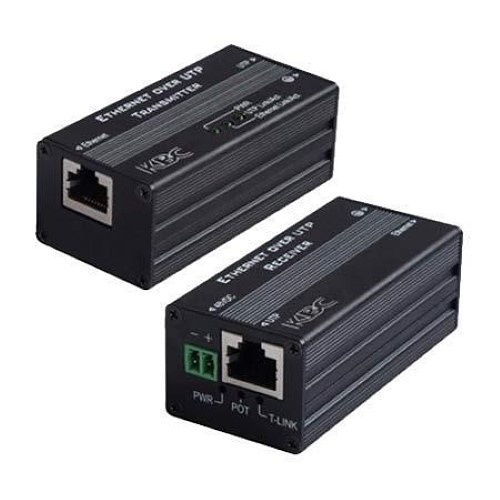

KBC Networks EERF-1KT-B eCopper Kit for (1) PoE Camera Auto-Sensing PSE Ethernet over Twisted Pair, (1) EERF1-LS1-T-MN-B Transmitter, (1) EERF1-LN1-R-MN-B Receiver and (1) GST60A48 Power Supply
EERF-1KT-B
|M5-EERF1KTB
Shop all KBC Networks
KBC Networks EERF-1KT-B eCopper Kit for (1) PoE Camera Auto-Sensing PSE Ethernet over Twisted Pair, (1) EERF1-LS1-T-MN-B Transmitter, (1) EERF1-LN1-R-MN-B Receiver and (1) GST60A48 Power Supply
EERF-1KT-B | M5-EERF1KTB
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The KBC eCopper line of products offer a cost-effective way to connect the latest IP cameras using existing coax or copper (UTP) wiring to a remote monitoring station. In addition to saving costs and time from cabling infrastructure upgrades to CAT5/5e/6, eCopper powers both its transmitter and remote cameras, eliminating the need for any additional power source at the camera site. eCopper also extends the IP camera cable run distance from 100 to 300 meters, making it ideal for upgrading analog to IP cameras and other systems in large corporate buildings, retail, casinos, banks, prisons, stadiums and other applications.
Main Features
- 802.3af/802.3at compliant
- Power over Wire
- UTP data rate 40Mbps (300m)
- Based on cable quality, cable pairs used (1, 2 or 4 pairs) and voltage applied to cable (48-57V DC) from headend, PoE and PoE+ are supported by PoW up to 400m
- Powered by PoW from EERF16-G3-R-RX-B, EERF8-G3-R-RX-B, EERF4-DN1-R-WN-B or EERF1-LS1-R-MN-B headend
- Complete protection design including surge protection, lightning protection
- Unique PoW transmission protection design together with 1, 4, 8 or 16 channels receiver headend
General Information
Name: KBC Networks EERF-1KT-B eCopper Kit for (1) PoE Camera Auto-Sensing PSE Ethernet over Twisted Pair, (1) EERF1-LS1-T-MN-B Transmitter, (1) EERF1-LN1-R-MN-B Receiver and (1) GST60A48 Power Supply
Category: KBC Networks, Data Comm & Networking, PoE Devices
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number M5-EERF1KTB Brand Name KBC Networks Manufacturer Part Number EERF-1KT-B
Power Consumption 30W
Network Technology 100Base-TX, 10Base-T
Height 2.99" Width 1.45"
Power Source DC
