Product Overview

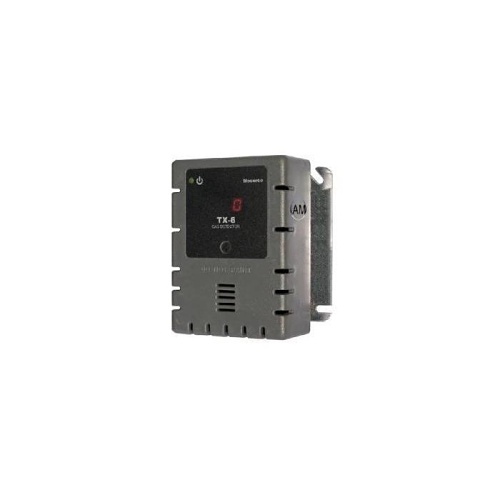

The Macurco CX-6-NO2 Low Voltage monitor provides automatic fan control to help maintain acceptable levels of Nitrogen Dioxide in parking garages, warehouses and other and controller and as an analog transducer for use with Macurco control panels, fire panels and other systems – ETL Listed
Main Features
- Digital Display (0-200ppm of CO), Onboard buzzer
- 100-240VAC input
- 5A SPDT Fan Control Relay
- 0.5A N.O. or N.C. Alarm Relay
- Selectable Fan and Alarm Relay Actuation Settings
- Coverage Area: 7,500 sq. ft.
- 4-20mA current loop
- Easy installation to 4x4 electrical boxes via mud plate
General Information
Name: Macurco CX-6-NO2 Nitrogen Dioxide Monitor, 12-24VAC/12-32VDC
Category: Macurco, Fire, Fire Detection Devices & Accessories, Gas Detectors Non-CO
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number MA-CX6NO2 Brand Name Macurco Manufacturer Part Number 70-2900-0130-4 Product Line Commercial Product Model CX-6-NO2 Product Series 6
ADI Part Number Replaces MA-TX6ND Model Number Replaces 70-2900-0004-2
Input Voltage 12-24V AC, 12-32V DC
Limited Warranty 2 Year
Certifications & Standards ETL Country of Origin US
