Audio-Technica ATW-3211/831EE1 3000 Series Wireless Lavalier Microphone System, EE1 Band

Brand: Audio Technica
ADI #:ME-ATW321181 Model #: ATW-3211/831EE1  Name: Audio-Technica ATW-3211/831EE1 3000 Series Wireless Lavalier Microphone System, EE1 Band
  • Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470-530 MHz) and EE1 (530-590 MHz)
  • Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
  • True Diversity operation reduces dropouts

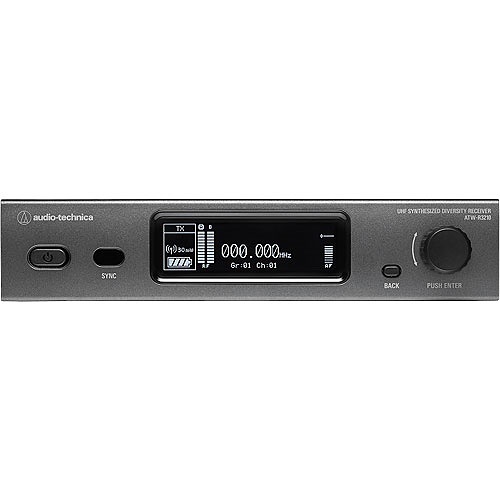

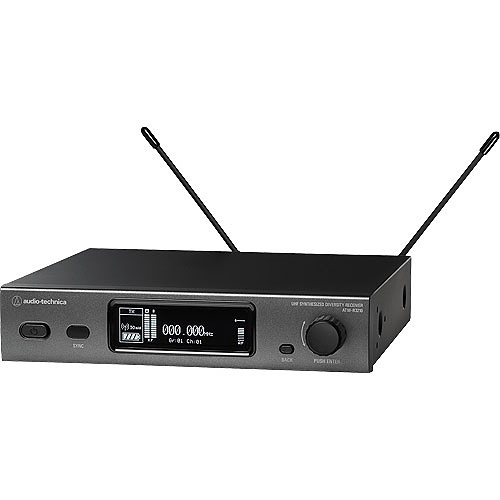

Image of ME-ATW321181

Product Overview

General Information

Name : Audio-Technica ATW-3211/831EE1 3000 Series Wireless Lavalier Microphone System, EE1 Band , Audio Technica
Category : Pro Microphones, Headphones & Headsets
UPC Code : 042005196180
Country of Origin : . Country of origin is subject to change.

Specifications

General Information

ADI Part Number : ME-ATW321181
Brand Name : Audio-Technica
Manufacturer : Audio-Technica U.S., Inc
Manufacturer Part Number : ATW-3211/831EE1
Product Model : ATW-3211/831
Product Name : 3000 ATW-3211/831 Wireless Microphone System
Product Series : 3000
Product Type : Wireless Microphone System
Weight (Approximate) (g) : 102.058, 1099.961, 2.835

Technical Information

Maximum Frequency Response (Hz) : 15500
Maximum Operating Frequency (Hz) : 589975000
Minimum Frequency Response (Hz) : 31
Minimum Operating Frequency (Hz) : 530000000
Operating Range : 328.08 ft
Operating Range (mm) : 100000

Audio

Maximum Frequency Response : 15.50 kHz
Minimum Frequency Response : 31 Hz
Signal to Noise Ratio (SNR) : 65 dB
Signal to Noise Ratio (SNR) (dB) : 65

Battery Information

Battery Chemistry : Alkaline
Battery Run Time : 9.50 Hour
Battery Run Time (Second) : 34200
Battery Size Supported : AA
Number of Batteries Supported : 2

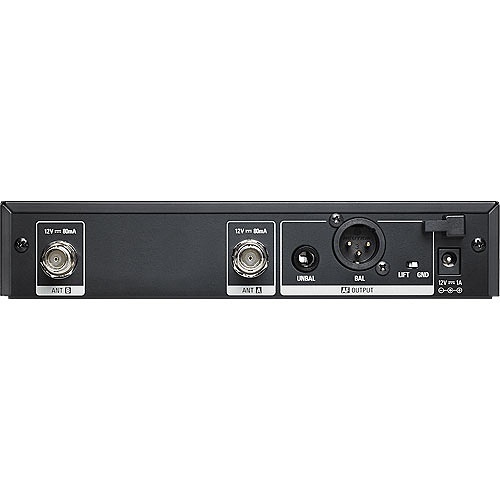

Interfaces/Ports

BNC : Yes
XLR : Yes

Network & Communication

Maximum Operating Frequency : 589.98 MHz
Minimum Operating Frequency : 530 MHz

Physical Characteristics

Depth : 7.5"
Depth (mm) : 191.008
Height : 1.7"
Height (mm) : 43.434
Weight (Approximate) : 0.10 oz, 2.42 lb, 3.60 oz
Width : 8.3"
Width (mm) : 210.058

Power Description

Input Voltage : 120 V AC, 230 V AC

Miscellaneous

Country of Origin : China
Package Contents : <ul> <li>ATW-R3210 Receiver</li> <li>ATW-T3201 Body-Pack Transmitter</li> <li>AT831cH Cardioid Condenser Lavalier Microphone</li> <li>Two Flexible UHF Antennas</li> <li>Rack-mount Adapters</li> </ul>
