Product Overview
The units are comprised of an LED light source and a silicon photodiode receiving element. In a normal standby condition, the receiving element receives no light from a pulsing light source. In the event of fire, smoke enters the detector and light is reflected from the smoke particles to the receiving element. The light received is converted to an electronic signal these signals are processed in the comparator, and when two consecutive signals exceeding the basic level are received within a specific period of time, the time delay circuit triggers the SCR switch to activate the alarm signal. The status LED lights continuously during the alarm period.
Main Features
- Low profile Only 1.8" high
- Non-Directional smoke chamber
- Vandal-resistant security locking feature
- Built-in magnetic Go/No-Go detector test feature
- Removable smoke labyrinth for cleaning or replacement
- Automatic Sensitivity window verification function meets outlined requirements in NFPA 72 Chapter 7, Inspection, Testing and Maintenance
General Information

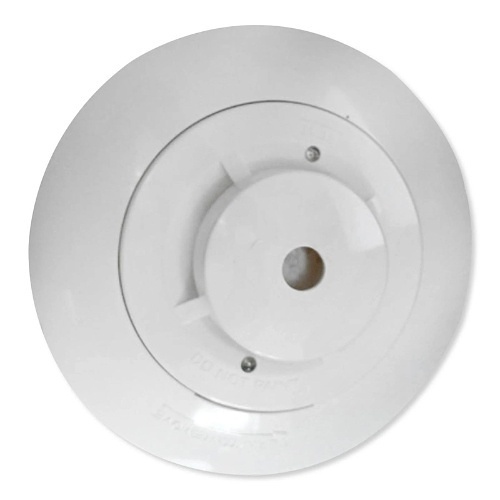

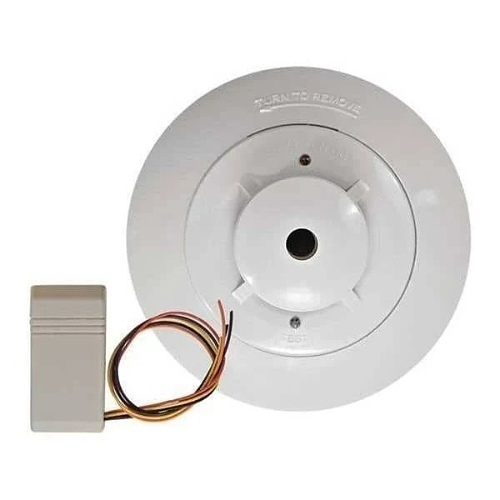

Name: Napco FW-2S 2-Wire Smoke Detector with Sounder
Category: Napco Security Technologies, Fire, Intrusion, Fire Detection Devices, Life Safety Devices, Smoke & Heat Detectors, Smoke Detectors
UPC Code: 785026096021
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number NA-FW2S Brand Name Napco Security Technologies Manufacturer Napco Security Technologies Manufacturer Part Number FW-2S Product Model FW-2S Product Name FW-2S NAPCO 2-Wire Photoelectric Smoke Detector w/Built In Sounder Product Type Smoke Detector Â
-
Connectivity Technology Wireless Detectable Medium Smoke Sensing Technology Photoelectric Â
-
Input Voltage 35V DC, 8V DC Â
-
Certifications UL 864, UL 985 Environmental Certification UL Environmentally Friendly Yes UL Listed Yes Â
