Middle Atlantic PWR-9-RP PWR Series Horizontal Power Distribution, 15A, 9-Outlet, Black

Brand: Middle Atlantic by Legrand
ADI #:NO-PWR9RP Model #: PWR-9-RP  Name: Middle Atlantic PWR-9-RP PWR Series Horizontal Power Distribution, 15A, 9-Outlet, Black
  • NEMA 5-15P plug/connector type for maximum usability with added reliability
  • 9 x AC Power offers maximum safety, convenience, and increased usability
  • Allows better current flow to ensure maximum efficiency

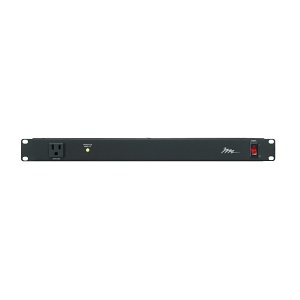

Image of NO-PWR9RP

Product Overview

Essex Rackmount Power units provide affordable power distribution in a compact, rackmount form factor. Designed for use in all Essex racks, these rackmount units feature surge protection and filtering.

  • Value priced power specially designed for the Essex collection
  • Line to neutral surge protection and filtering, which eliminates noise
  • Models available with local meter to display current, voltage and power draw
  • UL Listed
  • 15 Amps
  • Flat black finish
  • Space-saving 1 rackspace design
  • Integrated circuit breaker

General Information

Name : Middle Atlantic PWR-9-RP PWR Series Horizontal Power Distribution, 15A, 9-Outlet, Black , Middle Atlantic by Legrand
Category : Power Strips
UPC Code : 656747240133
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : NO-PWR9RP
Brand Name : Middle Atlantic
Manufacturer : Legrand Group
Manufacturer Part Number : PWR-9-RP
Product Line : Essex
Product Model : PWR-9-RP
Product Name : Essex Rackmount Power, 9 Outlet
Product Type : Power Strip

Technical Information

Cord Length (mm) : 2743.2
Maximum Frequency (Hz) : 60

Interfaces/Ports

Receptacles : 9 x AC Power

Physical Characteristics

Color : Black
Depth : 4.3"
Depth (mm) : 110.124
Form Factor : Rack Mount
Height : 1.7"
Height (mm) : 44.099
Width : 19"
Width (mm) : 482.6

Power Description

Cord Length : 9'
Input Voltage : 120V AC
Input Voltage (V AC) : 120
Maximum Frequency : 60 Hz
Maximum Input Current : 15 A
Maximum Input Current (A) : 15
Plug/Connector Type : NEMA 5-15P

Product Information

Mount Type : Horizontal

Warranty

Limited Warranty : 3 Year

Miscellaneous

Assembly Required : Yes
Compatibility : Middle Atlantic Essex Racks
